Test Space: | Vertical 120 * Throat 90mm | Conversion: | Support Hardness Conversion |
---|---|---|---|
Objective: | 10X, 40X | Eyepiece: | Digital Micrometer Eyepiece |
Turret: | Manual Turret | Display: | Touch Screen Display |

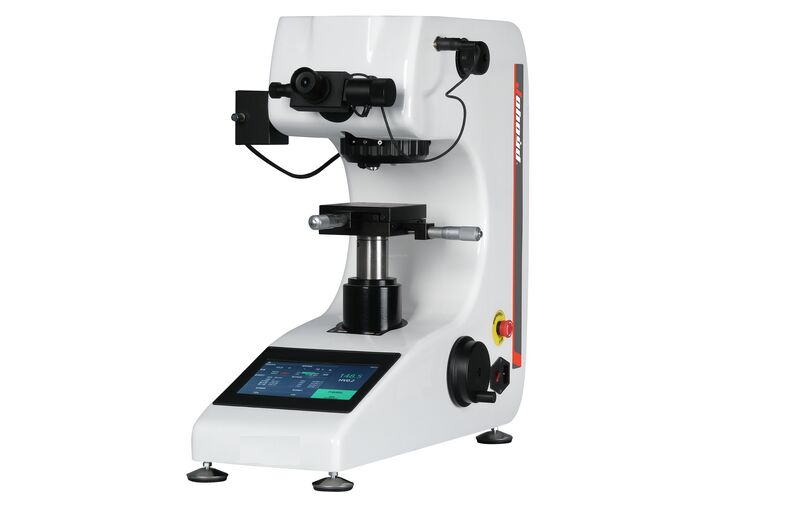

Manual Turret Touch Screen Digital Microhardness Tester
Model: HVST-1000
Product description:
iqualitrol HVST-1000 manual turret digital micro hardness tester is the latest generation of multi-functional touch screen micro hardness tester developed by our company.
iqualitrol HVST-1000 has high magnification optical measurement system and optical dual-channel structure, photoelectric, optical couples and other new technologies, in addition to the basic Vickers hardness test requirements.
The upgraded digital micrometer eyepiece can be directly Read the length of the measurement, so that the measured value can be obtained quickly and accurately.
The upgraded control operating system adopts a 7-inch LCD touch screen, which can provide more measurement data and more comprehensive and precise control.
Technical Parameters:
Model | HVST-1000, manual turret |
Micro hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
Display | 7- inch LCD touch screen |
Test force | 10,25,50,100,200,300,500,1000gf |
Loading control | Automatic (load/dwell/unload) |
Dwell time | 5 to 60 seconds |
Test force selection | External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display |
Objectives | 10X, 40X |
Optical channel | Dual light channels (eyepieces and CCD camera channels) |
Optical system | 1. Automatic digital encoder; 2. The total magnification: 100X (observation), 400X (measurement); 3. Measuring range (μm): 200; 4. Resolution (μm): 0.01 |
Hardness measurement range | (5-3000) HV |
XY test platform | Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
Maximum height of specimen | 90mm |
Throat depth | 120mm (distance from the center line of the indenter to the wall) |
Voltage | AC220V/50HZ |
Weight | 35kg |
Dimensions | 400*290*480mm |
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and the operation is not easy to fatigue for a long time;
2. 7-inch LCD touch screen can visually display the hardness value, conversion hardness, test method, test force, brightness, load time, number of measurements, statistical data, upper and lower limit measurement range, test time and other test procedures are straightforward;
3. The system comes with a calibration function, you can manually adjust the input error calibration instrument;
4. The brightness of the optical system can be adjusted: 0-100;
5. Can store up to 100 sets of test data, display the last 5 sets of test data in the main interface;
6. The test force unit can be manually selected to convert to each other, the conversion unit is: (Kgf, N);
7. Can be displayed simultaneously: maximum, minimum, average, maximum error, sample difference;
8. The main interface can display 4 conversion scales at the same time, and can be switched: American standard and international standards, a total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
9. Can set the upper and lower limit measurement range, displayed on the main measurement interface;
10. The measuring scale can be converted into HK Knoop hardness;
11. The operating system can be converted in English;
12. HVST-1000 model can be realistic: the length of the measurement directly confirms the hardness value;
13. Cast aluminum shell molding structure stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafer,
Standard configuration:
1. Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) | 2. Test platform, weight, microscope accessory box; |
3. Weights x6 | 4. Weight bar x1 |
5. Cross table x1 | 6. Sheet clamping table x1 |
7. Flat mouth clamping table x1 | 8. Filament holding table x1 |
9. Level meter x1 | 10. Screwdriver x2 |
11. Horizontal adjustment screws x4 | 12. External power cord x1 |
13.10× Digital Micrometer Eyepieces x1 | 14. Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
15. Fuses (1 A) x2 | 16. Product certification x1 |
17. Product Instruction Manual x1 | 18. Dust cover x1 |
Note:
1. Optional side-sway lifting system makes the lifting system more stable and accurate.
2. Side-sway lifting system, optional Z-axis jog, improve efficiency.
3. Optional built-in printer, one-click printing of measurement data.
4. Optional computer measurement software, computer operation, improve efficiency, eliminate human error, more accurate accuracy, can produce data reports.
