Large Screen Vertical Space 100mm Digital Micro Vickers Hardness Tester with Auto Turret

China Large Screen Vertical Space 100mm Digital Micro Vickers Hardness Tester with Auto Turret supplier

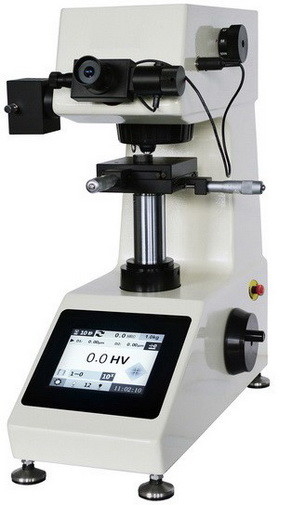

Large Image :  Large Screen Vertical Space 100mm Digital Micro Vickers Hardness Tester with Auto Turret

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: MHV-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Display: Touch Screen Turret: Motorized Turret
Data Output: Built-in Printer And RS232 Magnification: 100X, 400X
Vertical: Max Height 100mm Throat: Horizontal Space 98mm


Large Screen Vertical Space 100mm Digital Micro Vickers Hardness Tester with Auto Turret


Technical Data Download: iqualitrol Micro Hardness Tester MHV-1000


Brief Introduction:

iqualitrol MHV-1000 equipped with a large LCD screen, the operation is more directly and clearly, it can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement.

iqualitrol MHV-1000 support to save and revise the date, record the measuring results, compute the data, outputting the information with the printer, support hardness conversion among 17 hardness scales, and linking to PC in RS 232 interface and cable.


MHV-1000 apply color touch screen and digital 10x eyepiece, which makes display and measurement intuitively and easily.


LCD screen can directly show the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time.


As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the large screen.


Test results can be saved for reviewing or be printed out by the built-in printer, and RS232 interface can connect with computer to transfer data.


Available to install optional Knoop indenter to measure Knoop hardness.


Support optional LCD video measuring device and CCD image automatic measuring system.


Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.


Technical Specification:

Model MHV-1000
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic Turret
Conversion Scale HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Data Output Built-in Printer, RS232 Interface
Hardness Reading Touch Screen Display, Data can be saved
Objective 10x (Observe), 40x (Measure)
Eyepiece 10X
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 100mm
Throat 98mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 480×325×545mm, Packing Dimension: 600×360×800mm
Weight Net Weight: 31kg, Gross Weight: 44kg


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10x Digital Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 10x, 40x Objective each 1 pc
Weights 6 pcs Weight Axis 1 pc
Cross Test Table 1 pc Flat Clamping Test Table 1 pc
Thin Specimen Test Table 1 pc Filament Clamping Test Table 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V/15~20W 1 pc
Power Cable 1 pc Screw Driver 2 pcs
Hardness Block 400~500 HV0.2 1 pc Hardness Block 700~800 HV1 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual
