| Horizontal: | Test Space (Left-right) 400mm | Test Stroke: | Max 1000mm，exclude Grip |
|---|---|---|---|
| Test Mode: | Stretching, Peeling, Deformation, Tearing, Breaking, Puncture, Opening Force, Bending | Application: | Hardware, Insulators, Fabrics, Plastics, Films, Composite Materials, |
| Test Speed: | 0.5～500mm/min | Capacity: | 200、500、1000、2000kg |

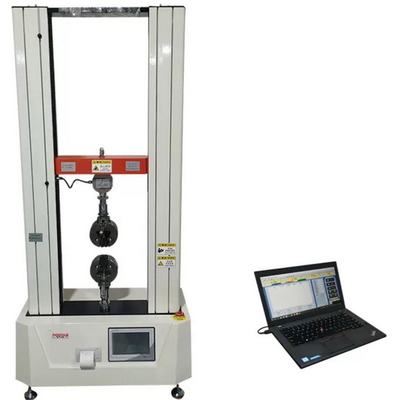

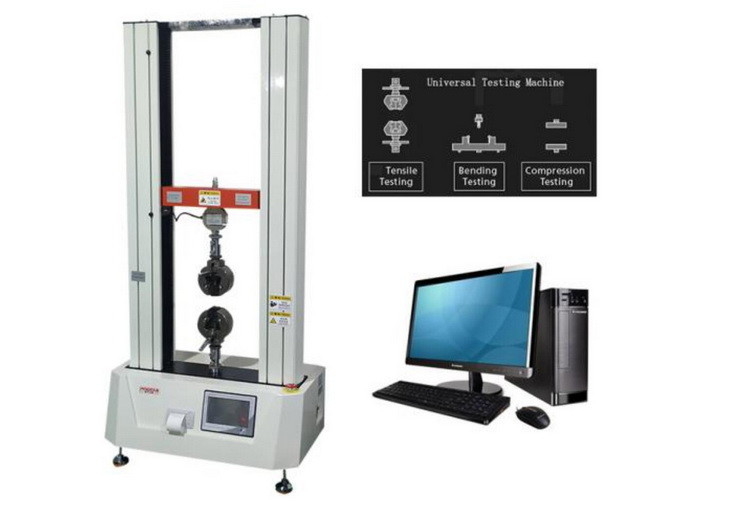

Computerized Double Column Tension Testing Machine with Max Capacity 20KN
Model: iPT-1160
Application and Test Mode:
iqualitrol iPT-1160 double column tension testing machine is suitable for metal materials, non-metallic materials, wires and cables, rubber plastics, paper products, adhesive tapes, luggage and handbags, textile fibers, ceramics, packaging, leather and other industries.
Choose a variety of different clamps/grips/jigs/fixtures to do tensile, compressive, holding tension, holding pressure, bending resistance, tearing, peeling, adhesion, puncture, bursting, shearing, bending resistance and other tests.
Technical Specifications:
| Model | iPT-1160 | iPT-1160B |
| Force Sensor | 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg, select one as max capacity | |
| Display | force and extension display | |
| Force Accuracy | ±0.5% | |
| Force Resolution | 1/500,000 | |
| Effective Measure Range | 1~100%F.S | |
| Deformation Indication Accuracy | ±0.5% | |
| Test Speed | 0.5～500mm/min | |
| Test Stroke | Max 1000mm,exclude grip | |
| Effective Test Space | Left right 400mm | |
| Force Unit | kgf,gf ,N,kN,Ibf | |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 | |
| Deformation Unit | mm,cm,in | |
| Stop Mode | Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing | |
| Snap Method | Manually take points during the test and pre-set take points (20 points) function | |
| Computer Extension |
Without (only digital display) |
With (connected to computer) |
| Standard Configuration | 1 micro printer, 1 power cable, 1 operation manual, 1 product qualifed certificate, 1 iqualitrol warranty card | 1 micro printer, 1 operating software, 1 network cable, 1 power cable, 1 operating manual, 1 product qualifed certificate, 1 iqualitrol warranty card |
| Machine Size | About 76×46×160cm(W×D×H) | |
| Machine Weight | About 120kg | |
| Motor | Servo Motor | |
| Power Supply | AC 220V,50/60Hz | |
Software Interface:
