Touch Screen Digital Auto Turret Vickers Hardness Testing Machine with Mass Data Storage

China Touch Screen Digital Auto Turret Vickers Hardness Testing Machine with Mass Data Storage supplier

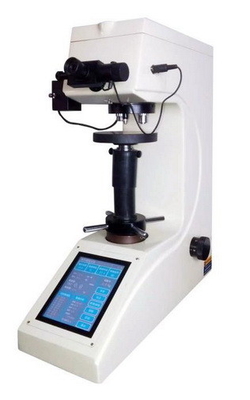

Large Image :  Touch Screen Digital Auto Turret Vickers Hardness Testing Machine with Mass Data Storage

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-5ATHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Objective: Automatic Turret Function, HD Measurement And Observation - Dual Objective Lens Combination Key Feature: Touch Screen And High-speed ARM Processor, Data Automatic Correction, And Provide Data Broken Line Report
HVS-50ATHY: Max Loading Force 50Kgf, Auto Turret, Digital Eyepiece HVS-30ATHY: Max Loading Force 30Kgf, Auto Turret, Digital Eyepiece
HVS-10ATHY: Max Loading Force 10Kgf, Auto Turret, Digital Eyepiece HVS-5ATHY: Max Loading Force 5Kgf, Auto Turret, Digital Eyepiece


Touch Screen Digital Auto Turret Vickers Hardness Tester with Mass Data Storage


Model: HVS-5ATHY


Product description:

● iqualitrol HVS-5/10/3050ATHY touch screen digital display automatic turret Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage , the data is automatically corrected, and a data line report is provided;


● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;


● Equipped with automatic turret function, high-resolution measurement and observation objective lens, combined with high-definition digital micrometer eyepiece with built-in length encoder, it realizes one-key measurement of indentation diagonal line, eliminating human operation interference and reading errors;


● Convenient operating system, which can automatically convert the unit of the full hardness scale;

● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;


● With software hardness value correction function, the hardness value can be directly corrected within a certain range;

● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;


● It has the function of hardness value curve display, which can directly display the change of hardness value;

● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;


● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.


Main Parameters:


Model HVS-5/10/30/50ATHY
Range of Measurement 5-5000HV
Test Force Loading Mode Weight Loading












Data Entry Mode AUTOMATIC
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HVS-5/10/30ATHY serial




HVS-50ATHY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg


Accessories Box:


Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
