| Vertical Space: | Max 1000mm | Test Speed: | 0.05～1000mm/min, Adjustable |
|---|---|---|---|
| Force Accuracy: | ±0.5%(GB/T 16491-2008) | Resolution: | Force Resolution 1/500,000 |
| Capacity: | Max 2000kgf | Control Mode: | Touch Screen Controller |

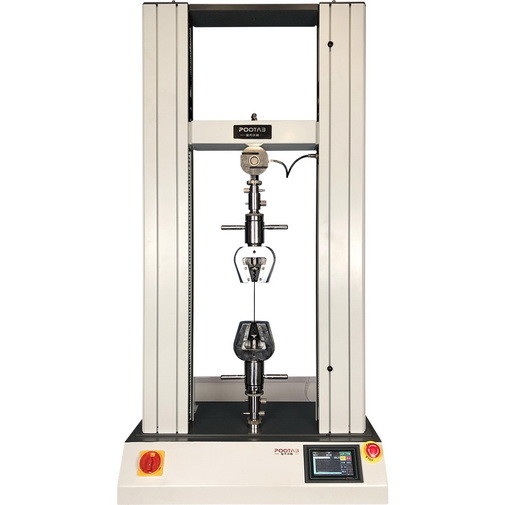

Double Column Touch Controller Servo Tensile Testing Machine with Stroke Max 1000mm
Model: iPT-1166
Application:
iqualitrol iPT-1166 servo testing machine is suitable for aerospace, petrochemical, mechanical manufacturing, metal materials and products, wire and cable, rubber and plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries.
iqualitrol iPT-1166 can test the physical properties of all kinds of materials, finished products and semi-finished products. Different fixtures can be used for tensile test, compression test, tension test, compression holding, bending test, tearing test, stripping test, adhesion test and shear test.
Features :
High Performance:
The machine structure adopts the interstitial ball screw and the high stiffness guide column, which improves the load efficiency and the structural rigidity.Adopt full digital ac servo system to ensure high transmission efficiency, smooth transmission, low noise, speed accuracy can be controlled within ±0.2%;
High Precision
Imported high-precision sensor, effective measurement range 0.5% ~ 100%F.S, the comprehensive accuracy is better than 0.085%
Standardized
Fixture connection standardization, can quickly replace various test fixture;
Highly Intelligent
Professional software intelligent control interface, automatic parameter setting, working state control, data acquisition and processing analysis, results display and print output;
High level appearance
Aluminum extruded sealing plate, with the exquisite processing technology of spare parts, presents the exquisite European design style of the whole machine, and embodies the unique aesthetic proposition of industrial design.
Technical Parameters:
| Model | iPT-1166 |
| Capacity | 2,5,10,20,50,100,200,500,1000,2000kgf, select one |
| Force Accuracy | ±0.5%(GB/T 16491-2008) |
| Force Resolution | 1/500,000 |
|
Measurement Range |
0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.05～1000mm/min,free set |
| Test Travel | Max 1000mm,exclude fixture/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special Function |
Tensile holding, compress holding, tensile fatigue , compression fatigue ( software need updated) |
| Standard Configuration | Standard fixture 1 pair, software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card |
| optional | Business computer , printer , various test grips |
| Size | About 76×46×160cm(W×D×H) |
| Weight | About 160kg |
| Motor | AC servo motor |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as specified |
