20KN Double Column Tension Universal Testing Machine Integrated Temperature Test Chamber

China 20KN Double Column Tension Universal Testing Machine Integrated Temperature Test Chamber supplier

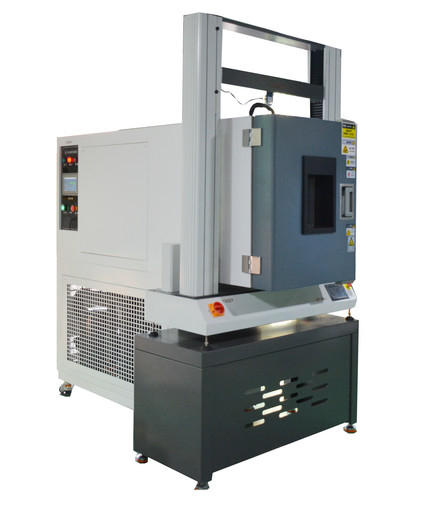

Large Image :  20KN Double Column Tension Universal Testing Machine Integrated Temperature Test Chamber

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: iPT-1167GDW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Control System: All-digital Ac Server To Control Machine Structure: Aluminum Extruded Sealing Plate With High Precision Double Rolling Screw And Guide Column
Heating Rate: 3℃/min (customizable) Chamber: Internal Size: 220*350*450mm (customizable)
Temperature: Range: -20℃, -40℃, -60℃~150℃ Capacity: 200, 500, 1000, 2000kgf (Select One)



20KN Double Column Tension Testing Machine Integrated Temperature Test Chamber



Model: iPT-1167GDW



Introduction:

iqualitrol iPT-1167GDW adopts the latest design concept and manufacturing technology, integrating high and low temperature test box and tension testing machine.



iqualitrol iPT-1167GDW is specially designed to simulate the physical performance testing of various materials under different environmental conditions. For example, the machine is equipped with a high and low temperature test box, which can test the physical properties of materials such as tension, pressure and shear in different temperature environments.



Technical Parameters:

Model iPT-1167GDW
Capacity 200,500 ,1000,2000kgf, any one option
Temperature

-20℃,-40℃,-60℃~150℃ (200℃ customized)

(With observe window, lighting)

Chamber Inner Size

220*350*450mm

(other size could be customized)

Temperature Fluctuation ±0.5℃
Temperature Uniformity ≤±2℃
Heating Rate 3℃/min (no load)
Cooling Rate 0.7~1℃/min (no load)
Software Professional testing software under Windows
Force Measurement Accuracy ±0.5%
Deformation Measurement Resolution 0.01mm
Effective Force Range 0.5~100%F.S
Deformation Indicates Value Accuracy ±0.5%
Test Speed 0.05~1000mm/min
Test Travel Max 450mm,exclude grip
Effective Test Space Left right 220mm,front back 350mm
Unit switch a variety of internationally accepted units of measurement
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Function Tensile, compression, fatigue, bending, and shearing tests
Standard Configuration fixture/grip* 1 pair, machine seat*1, software and data line*1, power line*1, operation manual*1 qualification certificate*1, warranty card*1
Size(W×D×H)cm

Tensile machine 76×45×154,chamber 105×45×60,

Seat 80×60×71,after assembly 80×105×225

Weight About 300kg
Motor Japan Panasonic AC servo motor
Power Supply 1PH,AC220V,50/60Hz,15A





Machine Features :



High Performance

The machine structure adopts aluminum extruded sealing plate with high precision, low resistance, no clearance, double rolling screw and guide column, which improves the load efficiency and structural rigidity.



High Precision

The control system adopts all-digital ac server to control the ac servo motor with high response frequency, so as to ensure the high efficiency, stable transmission, low noise, and the speed accuracy can be controlled within ±0.2%.



High intelligence

In the temperature range, the temperature can be set freely, temperature maintenance time;It can monitor the pressure inside the evaporator and display it



digitally in real time.

Professional software intelligent control interface, automatic parameter setting, working state control, data acquisition and processing analysis, result display and printing output;Click the mouse one-button control, one-button output test report, no need for tedious education and training;





Software Characteristics :



Windows working platform, parameter setting all click, simple operation;

Using a single screen operation, no screen switching

Software interface with simplified Chinese, traditional Chinese and English three languages, easy to switch;

Testing table mode can be self-regulated;

Test data can be directly called in the main screen;

A variety of units of measurement, the British system can be switched;

Data comparison of multiple curves can be conducted simultaneously;

Automatic return function;

Auto correct function;

Custom test method.

With test data operation and analysis function;

Automatic magnification to achieve the most appropriate size of the graph.





Used for tensile, compression, bending, stripping, tension, pressure, fatigue test, etc.

Equipped with high-precision two-point extender, it is very suitable for measuring large deformation of elastic materials such as rubber



Professional test software conforms to GB228-87, GB228-2002 ...more than 30 countries’ standard regulations, at the same time, according to GB, ISO, JIS, ASTM, DIN, and provide a variety of standard test and data processing, and good extensible.
