Weights Loading Analogue Eyepiece MANUAL Turret Vickers Hardness Tester

China Weights Loading Analogue Eyepiece MANUAL Turret Vickers Hardness Tester supplier

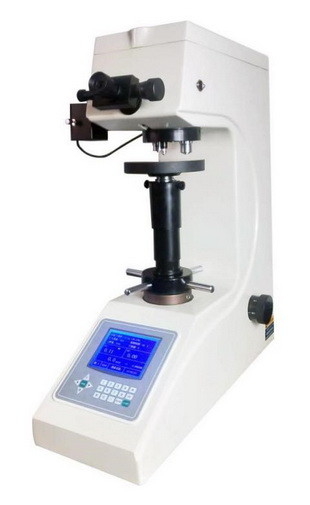

Large Image :  Weights Loading Analogue Eyepiece MANUAL Turret Vickers Hardness Tester

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HV-5HY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
HV-50HY: Force 50Kgf, Weights Loading Auto Turret Analogue Eyepiece HV-30HY: Force 30Kgf, Weights Loading Auto Turret Analogue Eyepiece
HV-10HY: Force 10Kgf, Weights Loading Auto Turret Analogue Eyepiece HV-5HY: Force 5Kgf, Weights Loading Auto Turret Analogue Eyepiece



Weights Loading Analogue Eyepiece MANUAL Turret Vickers Hardness Tester LCD Screen



Model: HV-5HY



product description:

● IQUALITROL HV-5/10/30/50HY MANUAL turret Vickers hardness tester, using high-speed ARM processor, intuitive display, friendly human-computer interaction, and easy operation;



● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;



● Equipped with MANUAL turret function;

● Convenient operating system, which can automatically convert the unit of the full hardness scale;



● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;



● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.





Main Parameters:

Model HV-5/10/30/50HY
Range of Measurement 5-5000HV
Test Force Loading Mode WEIGHTS Loading
HV-5HY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HV-10HY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HV-30HY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HV-50HY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode MANUAL
Turret Mode MANUAL TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HV-5/10/30HY serial



10×,40×



HV-50HY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:



Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
