Digital Eyepiece Auto Turret Weights Loading Vickers Hardness Testing Machine with Large LCD

China Digital Eyepiece Auto Turret Weights Loading Vickers Hardness Testing Machine with Large LCD supplier

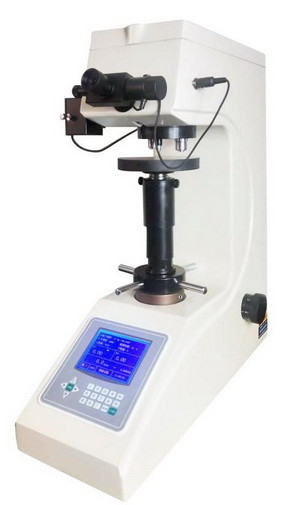

Large Image :  Digital Eyepiece Auto Turret Weights Loading Vickers Hardness Testing Machine with Large LCD

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-5AHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
HVS-50AHY: Test Force 50Kgf, Digital Eyepiece Auto Turret Weights Loading LCD Display HVS-30AHY: Test Force 30Kgf, Digital Eyepiece Auto Turret Weights Loading LCD Display
HVS-10AHY: Test Force 10Kgf, Digital Eyepiece Auto Turret Weights Loading LCD Display HVS-5AHY: Test Force 5Kgf, Digital Eyepiece Auto Turret Weights Loading LCD Display



Digital Eyepiece Auto Turret Weights Loading Vickers Hardness Testing Machine with Large LCD


Model: HVS-5AHY


product description:
● iqualitrol HVS-5/10/30/50AHY digital display automatic turret Vickers hardness tester, using high-speed iqualitrol ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data correction, and provide data line report;


● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;


● Equipped with automatic turret function, high-resolution measurement and observation objective lens, combined with high-definition digital micrometer eyepiece with built-in length encoder, it realizes one-key measurement of indentation diagonal line, eliminating human operation interference and reading errors;


● Convenient operating system, which can automatically convert the unit of the full hardness scale;


● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;


● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;


● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;


● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.


Main Parameters:

Model HVS-5/10/30/50AHY
Range of Measurement 5-5000HV
Test Force Loading Mode WEIGHTS Loading
HVS-5AHY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HVS-10AHY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HVS-30AHY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HVS-50AHY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode AUTOMATIC
Turret Mode AUTOMATIC TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HVS-5/10/30AHY serial



10×,40×



HVS-50AHY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:



Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
