Electronic reversing switch Brinell Hardness Testing Machine with precision reading microscope

China Electronic reversing switch Brinell Hardness Testing Machine with precision reading microscope supplier

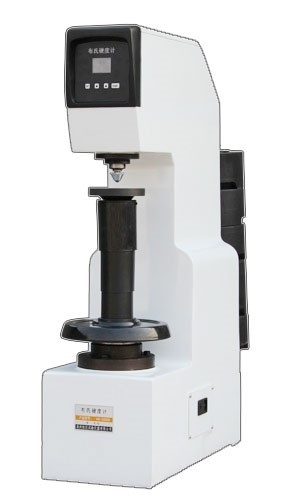

Large Image :  Electronic reversing switch Brinell Hardness Testing Machine with precision reading microscope

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HB-3000B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Throat: 120mm Height: Max Specimen Height 230mm
Test Force: 187.5Kgf, 250Kgf,750Kgf, 1000Kgf, 3000Kgf Microscope: High-precision Reading Microscope
Reversing Switch: High Testing Accuracy, Wide Testing Range, Automatic Loading Of Experimental Force Structure: High-quality Cast Iron And Molded By One-time Casting



Electronic reversing switch Brinell Hardness Testing Machine with precision reading microscope



Model: HB-3000B



product description:

iqualitrol HB-3000B manual Brinell hardness tester, the body is made of high-quality cast iron and molded by one-time casting, combined with the car paint treatment process, the shape is round and beautiful;



iqualitrol HB-3000B Brinell hardness tester has firm structure, good rigidity, reliability, durability and high testing efficiency;



It adopts electronic reversing switch, which has the characteristics of high testing accuracy, wide testing range, automatic loading of experimental force, automatic keeping of timing, automatic unloading, etc.;



Iqualitrol HB-3000B equips with high-precision reading microscope, ensure the machine widely used in quality monitoring in production sites.

The precision complies with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.



Specifications:

Product NameBrinell Hardness Tester
ModelHB-3000B
Test ForceKgf187.5Kgf, 250Kgf,750Kgf, 1000Kgf, 3000Kgf
N1839N, 2452N,7355N, 9800N, 29400N
Measuring Range(8-450) HBS, (8-650) HBW
Hardness DisplayCheck the table of Brinell Hardness scale
MicroscopeAnalogue 20x Microscope
Max height of Specimen230mm
Instrument Throat120mm
Dimension700 x268 x842mm
Gross/Net Weight240Kg/210Kg
Execution StandardGB/T231.2, JJG150, EN-ISO 6506, ASTM E10-12, JIS Z2243
Accuracy of Brinell hardness testing
Hardness RangeMax ToleranceRepetition
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%


Standard Delivery:

Instrument Main bodyØ10mm Ball IndenterØ200mm Flat anvil
Analogue 20x MicroscopeØ5mm Ball IndenterØ60mm Flat anvil

Hardness Block

HBW 10/3000

Ø2.5mm Ball IndenterØ40mm V-shape Anvil

Hardness Block

HBW 5/750

Power CableAccessories Box
Anti-dust CoverOperation ManualQualified Certificate
