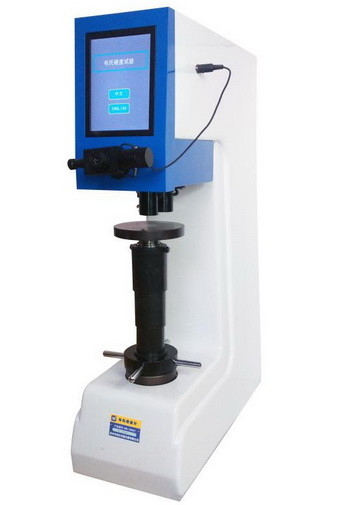

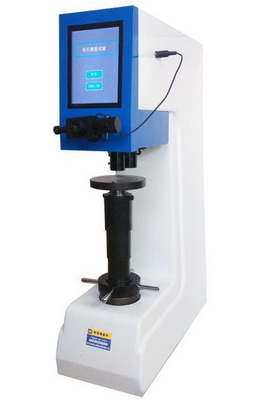

Touch Screen Auto Turret Digital Brinell Hardness Tester with Close Loop Loading Control

Touch Screen Auto Turret Digital Brinell Hardness Tester with Close Loop Loading Control

Model: HBS-3000AET

product description:

Iqualitrol HBS-3000AET touch screen digital display Brinell hardness tester, using 8-inch touch screen and high-speed iqualitrol processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data correction, and provide data broken line report;

The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

Equipped with iqualitrol automatic turret, automatically switching between indenter and lens, more convenient to use;

Built-in hardness conversion scale, which can automatically convert the unit of the full hardness scale;

The iqualitrol electronic closed-loop control system applies the test force, which fully realizes the automatic operation of loading, loading and unloading;

Equipped with high-definition optical double objective lens, it can measure indentations of different diameters under the standard test force from 31.25-3000kgf;

The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

With software hardness value correction function, the hardness value can be directly corrected within a certain range;

With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;

With hardness value curve display function, visually display the change of hardness value;

Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

Optional CCD image processing system or video measuring device;

The precision complies with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.

Main Parameters:
