| Data Statistics: | Auto Calculate Max, Min, Avg, Error, Test Numbers | Conversion: | Hardness Conversion To Brinell, Vickers |
|---|---|---|---|
| Height: | Specimen Height Max 270mm | Dwell Time: | 3-60S, Adjustable |
| Throat: | 160mm | Printing: | Mini Printer And Com Port |

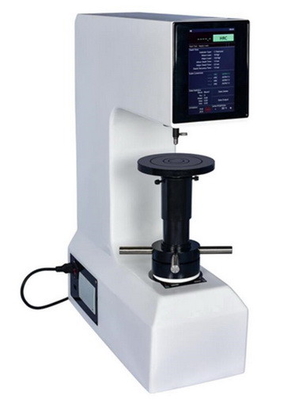

Touch Screen Twin Rockwell Superficial Hardness Tester with Printer COM port Data Compensation
Model: CHRTS-150S
Key Features:
iqualitrol CHRTS-150S twin Rockwell hardness tester equips with touch screen, adopts a closed-loop loading control system with high test force accuracy, good repeatability and stability of indication values.
With automatic loading and unloading test force, it can carry out the hardness test of a full range of Rockwell scales. When testing cylinders, corrections can be added automatically. Built-in printer to read relevant test results. the machine is also equipped with an emergency stop device.
Main Specifications:
| Initial Force | 3kgf(29.42N)/10kgf(98.07N) Error: ±2.0% |
| Total Force | 15kgf,30kgf,45kgf,60kgf,100kgf,150kgf |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HE45Y |
| Standards | GB/T230.1, GB/T230.2, JJG112, GB/T2848, GB/T3773, EN10109, ASTM E18, ISO 6508 |
| Conversion | Hardness Conversion to Brinell, Vickers |
| Display | Touch Screen |
| HR Resolution | 0.1 |
| Dwell Time | 3-60S, adjustable |
| Force Switch | Auto |
| Hardness value Correction | √ |
| Cylinder Compensation | √ |
| Force Compensation | √ |
| Range Judgement | √ |
| Data Statistics | Auto Calculate Max, Min, Avg, Error, Test numbers, etc. |
| Data Process | Printer, COM port |
| Specimen Height | 270mm |
| Throat | 160mm |
| Dimension | 560X210X810mm |
| Power Supply | AC220V/50HZ |
| Weight | 100KG |
