| Printing: | Printer, The Data Can Be Output Through RS232 And USB | Loading: | Electric Motor Loading/unloading Test Force, The Closed-loop Feedback |
|---|---|---|---|
| Curve: | Hardness Value Curve Display Function | Structure: | Integral Casting By High Quality Cast Iron |
| Display: | 8-inch Touch Screen And High-speed ARM Processor | Magnification: | Toal 20x |

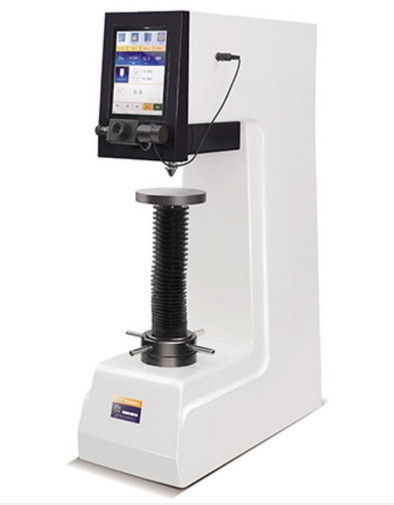

Touch Screen Digital Brinell Hardness Tester Manual Turret with Magnification 20X
Model: HBS-3000ET
Product Features:
iqualitrol HBS-3000ET Touch-Screen digital Brinell hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed;
The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；
With the hardness value curve display function, intuitive display the changes of hardness value;
Adopt the electric motor loading/unloading test force, the closed-loop feedback is carried out by the pressure sensor with 5‰ accuracy, and the test force can be automatically corrected by the high-speed ARM processor；
Equipped with printer, the data can be output through RS232 and USB interface port；
CCD image processing system or video measuring device is optional;
Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.
Main Parameters:
| Model | HBS-3000ET |
|
Range of Measurement |
5-650HBW |
| Test Force |
306.25, 612.9, 980.7, 1225.9, 1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (31.25,62.5,100,125,187.5,250,500,750,1000,1500,3000kgf) |
| Max Height of Specimen | 280mm |
| Distance between Indenter Center and Wall | 150mm |
| Objective | 20X |
| Hardness Resolution | 0.1HBW |
| Power Supply | AC 220V/50Hz |
| Dimension | 700*268*980mm |
| Weight | 180kg |
