Product Details:
Payment & Shipping Terms:
|
| Capacity: | Select One From 2, 5, 10, 20, 50, 100, 200kgf | Jig: | Compress Plate 1 Pair(9*15cm) |
|---|---|---|---|
| Front Back: | Space: Dia 90mm | Test Speed: | 0.5～500mm/min |
| Vertical Travel: | 200~300mm,exclude Grip | Test Mode: | Compress |

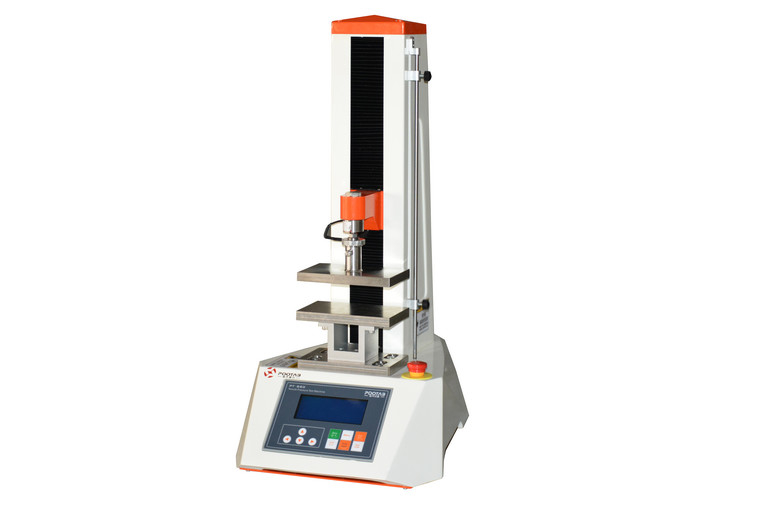

Battery Compression Testing Machine For Pressure test of battery pole group assembly
Model: iPT-1198DC
Application:
iqualitrol iPT-1198DC battery compress machine is the latest economic testing machine designed and developed by iqualitrol company, which is specially suitable for the pressure test of battery pole group assembly.
The machine has the advantages of high cost performance, easy operation and simple maintenance.
Machine Parameters:
| Model | iPT-1198DC |
| Capacity | 2,5,10,20,50,100,200kgf, any one option |
| Force Accuracy | ±1% |
| Force Unit | Kgf,N,lbf,Kpa |
| Stress Unit | Kpa |
| Test Speed | 0.5～500mm/min |
| Length Unit | mm |
| Test Item | Compress |
| Function | Holding pressure, timing, fixed force, fixed displacement |
| Displacement Measuring | yes |
| Test Travel | 200~300mm,exclude grip |
| Front Back Space | Dia 90mm |
| Grip | Compress plate 1 pair(9*15cm) |
| Weight | About 25kg |
| Size | About 450×280×680mm(W×D×H) |
| Power Supply | AC 220V,50Hz(or 110V,60Hz) |
