Product Details:
Payment & Shipping Terms:
|
| Model: | CREE-6014H | Heating Rate: | RT～160℃, About 15min |
|---|---|---|---|
| Temperature Range: | RT-250℃ | Plate Dimension: | 250*250mm |
| Cooling Type: | Nature Cooling | Cylinder Stroke: | Max 100mm |

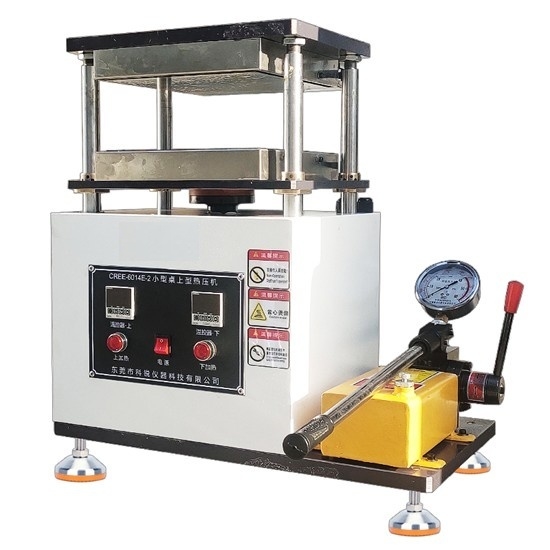

Manual Heat Press CREE-6014H
Brief Introduction:
Flatbed vulcanizing machine is used in pressing and molding all kinds of rubber model products and non-model products, and can also be used to press all kinds of thermosetting plastics and foam rubber and plastic products.
It has an independent power mechanism and electrical system, and is centrally controlled by buttons. The working pressure and heating temperature can be adjusted within a certain range. This model is manual type.
Technical Specifications:
|
Model |
CREE-6014H |
| Capacity | 30T |
| Pressure Gauge | Hydraulic gauge manual pressure control |
| Plate dimension | 250*250mm |
| Hot platen material | High-temperature resistant steel plate, surface carbonization quenching, special treatment fast thermal conduction, pressure parallel and undeformed, wear-resistant |
| Plate hardness | 50～60HRC |
| Plate flatness | ≤0.03mm |
| Plate Parallelism | ≤0.06mm |
| Temperature range | RT-250℃ |
| Temperature uniformity | 1.5℃ |
| Temp controller | 2 Omron temperature controllers |
| Temperature control mode | PID self-tuning with high-precision sensor, temperature control accuracy: ±1.0°C |
| Timer | LED display, time range 0.1S～99min～9.9hr |
| Heater | Built-in cylindrical type of heating mold [according to the area of the platen is configured with different powers, the temperature of the packaging platen is uniform, not the same power] |
| Heating time | RT～160℃, about 15min |
| Two hot plates | The temperature of hot plate can be set separately |
| Heating mode | Electric heating |
| Cooling mode | Nature cooling |
| Hydraulic system | Hydraulic control system, oil pump drive and 4-column guide piston to perform the test, with stable pressure, strong load force, and stable lifting; Pressure retention, pressure relief. convenience, and other advantages. |
| Structure | 4-column guide piston |
| Cylinder stroke | Max 100mm |
| Cylinder rate | 5mm/s |
| Pressure gauge | 0～200kg/sq.cm |
| Mold opening method | Rise and fall |
| Over-temperature protection | yes |
| Safety device | 4 |
| Matching mold frame [optional] | Customized, optional |
| dimension | (W×D×H) 650*550*600 mm |
| Power supply | 3∮, AC220V |
| Weight | ≈280kg |
Equipment Installation Needs:
1. Installation site
The ground is flat, the ventilation is good, there is no strong vibration around the equipment, no strong electromagnetic field around the equipment, no flammable, explosive, corrosive substances and dust around the equipment, and there is appropriate space for use and maintenance around the equipment, as shown in the figure below:
External temperature: 27C±3C; relative humidity: ≤85% ; Air pressure: 86KPA~106KPA
There should be space around the equipment for easy maintenance,
2. Gas supply requirements:
At least one air source of 6KG or more.
