Model: | ASR-5024-3 | Vibration Form: | Broadband Random Vibration |
---|---|---|---|
Simulated Road Surface: | Intermediate Road Surface Of Third-class Highway And Medium And Low-grade Road Surface Of Fourth-class Highway | Simulated Vehicle Speed: | Medium-sized Truck On Intermediate Road 35Km/hour, Medium Truck On Low Grade Road 25Km/hour |
Gravity Of Specimen: | Height Of Center Of Gravity Of Specimen ≤700mm | Power Supply: | Voltage: Three-phase Four-wire System 380V±10% 50Hz 9kVA |

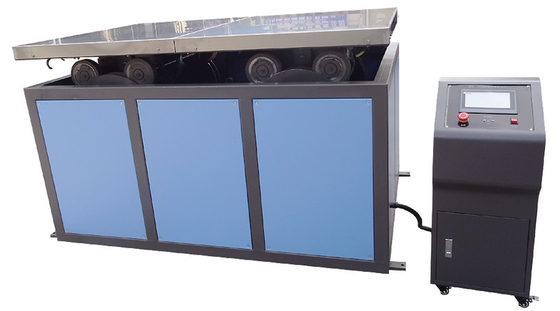

broadband random vibration Simulated Level 3 Highway
Bump Test Table for vehicle transportation
Model: ASR-5024-3
The simulated Level 3 highway bumpiness test bench evaluates the ability of various items with specific loads to withstand actual road conditions during highway vehicle transportation, so as to obtain the impact of actual road conditions on the items in the laboratory, and thereby evaluate the items and their packaging or basis for confirmation.
Main Technical Specifications:
1. Maximum weight of the test object (including fastening fixtures, etc.): 500kg
2. Vibration form: broadband random vibration
3. Probability density function of instantaneous acceleration value: approximately normal distribution
4. Simulated road surface: Intermediate road surface of third-class highway and medium and low-grade road surface of fourth-class highway.
5. Simulated vehicle speed: medium-sized truck on intermediate road 35Km/hour,
Medium truck on low grade road 25Km/hour
6. Height of center of gravity of specimen: ≤700mm
7. Strengthening level: 1:1
8. Work surface size: 2000X1400mm
9. Overall dimensions (length x width x height): 2000X1400X1000mm
10. Motor: 9KW
11. Continuous working time: 8 hours
12. Environmental conditions: temperature 0-40℃, humidity ≤90% (25℃)
13. Power supply voltage: three-phase four-wire system 380V±10% 50Hz 9kVA
14. Equipment weight: 2500kg
