| Turret: | Automatic Turret, Indenter And Objective | Eyepiece: | Digital Display Micrometer Eyepiece And Precise Data Calculation System |
|---|---|---|---|
| Printer: | Built-in Printer To Output Measurement Data | Test Force: | From 62.5kgf - 3000kgf With 10-level Test Force |
| Test Space: | Vertical 220mm * Throat 135mm | Feature: | High Precision, High Repeatability And Stability |

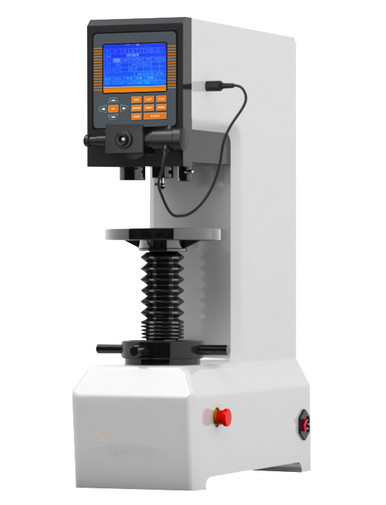

Automatic Turret Digital Brinell hardness Testing Machine with Specimen Thickness Alarm
Model: HBS-3000Z
Main functions and features:
iqualitrol HBS-3000Z has the characteristics of high precision, high repeatability and stability, easy operation, convenient and practical, and high cost performance;
The system automatically prompts to measure the minimum thickness of the product;
Automatic turret, automatic rotation of indenter and objective lens;
With 10-level test force, the test range is wider;
Equipped with digital display micrometer eyepiece and precise data calculation system, the hardness value can be displayed directly with one click;
Equipped with a built-in printer to output measurement data or connected to a computer, the measurement data of the host can be transferred to the computer for editing and saving;
Equipped with a high-performance stepping motor to automatically load and unload the test force, the noise generated during the test is smaller
Using photoelectric sensing technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;
Automatic input of indentation diameter, direct display of hardness value, dual display of any hardness unit can be realized, avoiding the tedious look-up table;
Self-designed high-magnification LED optical measurement, high image definition, adjustable brightness, long-term operation is not easy to fatigue;
Technical Specifications:
| Model | HBS-3000Z |
| Brinell Scales | HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000 |
| Test force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Loading control | Automatic (loading/dwell/unloading) |
| Turret | Automatic turret among indenter and objective |
| Specimen height | 220mm |
| Throat depth | 135mm |
| Distance between indenter and upper wall | 55mm(support customized) |
| Length resolution | 0.125um |
| Dwell time | 0~60s |
| Hardness range | 3.18~653HBW |
| Magnification | 20X |
| Test standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150 -2005 |
| Hardness reading | Automatic calculate |
| Data output | Built-in Printer, Hyper terminal |
| Power supply | AC220+5%, 50~60Hz |
| Dimension | 520*210*745mm |
| Weight | 125kg |
