Visual Touch Screen Brinell Hardness Testing Machine with Automatic Brinell Software

China Visual Touch Screen Brinell Hardness Testing Machine with Automatic Brinell Software supplier

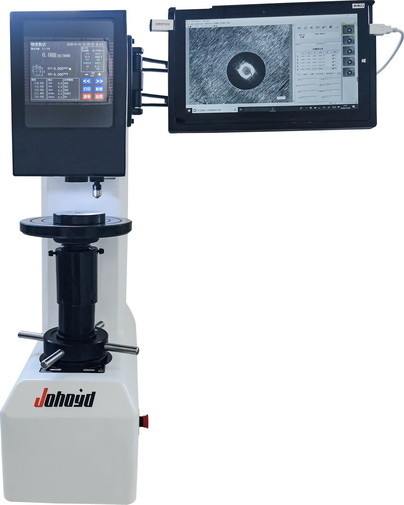

Large Image :  Visual Touch Screen Brinell Hardness Testing Machine with Automatic Brinell Software

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: PCHBST-3000Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Tablet: Computer Brinell Software Automatic Calculate Turret: Automatic Turret, Indenter And Objective
Screen: Touch Screen Display Visual: Apply CCD Camera
Hardness Judgement: Set Hardness Range, Automatic Judge Hardness Value Magnification: 20x


Visual Touch Screen Brinell Hardness Testing Machine with Automatic Brinell Software


Model: PCHBST-3000Z


Technical Specifications:

Model PCHBST-3000Z
Brinell Scales HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Loading control Automatic loading and unloading
Max Height of Specimen 220mm
Throat depth 135mm
Distance between indenter and upper wall 55mm(support customized)
Length resolution 0.125um
Dwell time 0~60s
Hardness range 8~650HBW
Turret Automatic turret
Hardness reading Computer software automatic calculate
Correction Software correct hardness value
Qualification judgement Set hardness range, automatic judge hardness value
Magnification 20X
Test standards EN ISO 6506, ASTM E-10-08, GB/T231.2,JJG150 -2005
Data output Computer save test data and generate report
Power supply AC220+5%,50~60Hz
Dimension 520*210*745mm
Weight 125kg

Main functions and features of hardness tester:

iqualitrol PCHBST-3000Z has the characteristics of high precision, high repeatability and stability, easy operation, convenient and practical, and high cost performance;

With 10-level test force, the test range is wider;


Automatic turret, automatic rotation of indenter and objective lens

The system has its own calibration function, which can manually adjust the input calibration instrument, and can also calibrate the magnification of the eyepiece.


Optical system brightness adjustable range: 0-100;

Can store up to 100 sets of test data;


The main interface can display 5 conversion scales at the same time;

Connected to the computer, the measurement data can be directly transmitted to the computer for editing and saving;


10. Equipped with a high-performance stepping motor to automatically load and unload the test force, the noise generated during the test is smaller;

11. Using photoelectric sensing technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;


12. Automatic input of indentation diameter, direct display of hardness value, dual display of any hardness unit, avoiding the tedious look-up table;

13. Self-designed high-magnification LED optical measurement, high image definition, adjustable brightness, and long-term operation should not be fatigued;


14. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

15. The surface is treated with car paint process, which has strong scratch ability and is still as bright as new after many years of use;
