| Loading Control: | Automatic (load/dwell/unload) | Objective: | 10X, 40X |
|---|---|---|---|
| X-Y Anvil: | Size (mm): 100×100 | Test Space: | Vertical 110 * Throat 85mm |
| Eyepiece: | Analogue Eyepiece 10x | Turret: | Manual Turret |

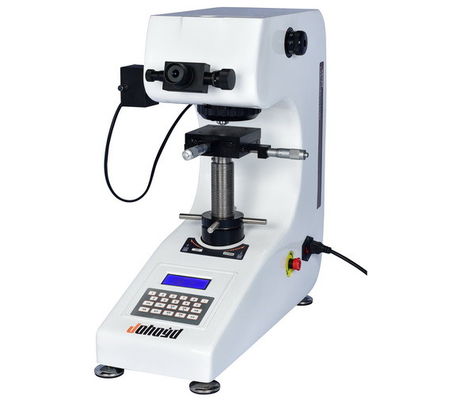

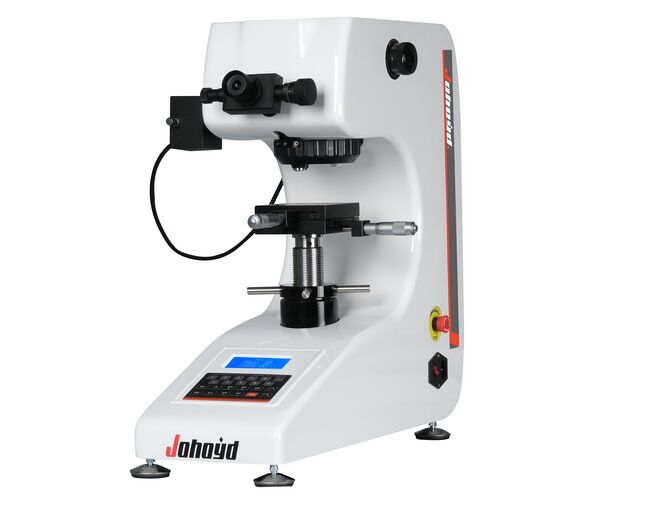

Basic Economical Micro hardness tester with Manual Turret and Analogue Eyepiece
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures;
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings;
3. Glass, wafers, ceramics.
Product description:
Iqualitrol HV-1000 micro hardness tester meets the basic Vickers hardness test requirements. The upgraded control system can provide more measurement data and the control is completed and accurate.
Technical Parameters:
| Model | HV-1000, manual turret |
| Micro hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Display | Dwell time (seconds), hardness value |
| Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf |
| Loading control | Automatic (load/dwell/unload) |
| Dwell time | 5 to 60 seconds |
| Test force selection | External selector knob, test force is automatically displayed on the LCD screen |
| Objectives | 10X, 40X |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system | 1.Automatic digital encoder; 2.The total magnification (μm): 100 × (observation), 400 × (measurement); 3.Measuring range (μm): 200; 4.Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000) HV |
| XY test platform | Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen | 110mm |
| Throat depth | 85mm (distance from the center line of the indenter to the wall) |
| Voltage | AC220V/50HZ |
| Weight | 35Kg |
| Dimension | 540×200×530mm |
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation is not easy to fatigue.
2. The industrial display screen can directly display the hardness value, the conversion hardness, the test method, the test force, the retention time, the number of measurements, and the test process is intuitive and clear;
3. Cast aluminum shell molding, structural stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;
Standard configuration:
| 1.Host (Micro Vickers indenter x1, 10x objective x1, 40x objective x1) | 2.Test platform, weight, microscope accessory box; |
| 3.Weights x6 | 4.Weight bar x1 |
| 5.Cross table x1 | 6.Sheet clamping table x1 |
| 7.Flat mouth clamping table x1 | 8.Filament holding table x1 |
| 9.Level meter x1 | 10.Screwdriver x2 |
| 11.Horizontal adjustment screws x4 | 12.External power cord x1 |
| 13.10× Digital Micrometer Eyepieces x1 | 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
| 15.Fuses (1 A) x2 | 16.Product certification x1 |
| 17.Product Instruction Manual x1 | 18.Dust cover x1 |
Note:
1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
