Touch Screen Manual Turret Digital Vickers Hardness Testing Machine with Weight Loading

China Touch Screen Manual Turret Digital Vickers Hardness Testing Machine with Weight Loading supplier

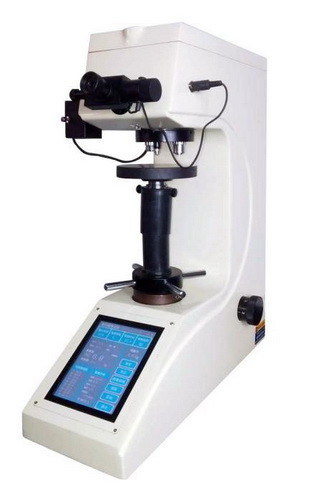

Large Image :  Touch Screen Manual Turret Digital Vickers Hardness Testing Machine with Weight Loading

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-5THY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
HVS-50THY: Loading Force 50Kgf, Touch Screen Manual Turret HVS-30THY: Loading Force 30Kgf, Touch Screen Manual Turret
HVS-10THY: Loading Force 10Kgf, Touch Screen Manual Turret HVS-5THY: Loading Force 5Kgf, Touch Screen Manual Turret
Data Process: Wireless Bluetooth Printer, And Output Data Through RS232 And USB Interfaces Accuracy: Complies With GB/T4340.2-2018 ISO6507-2 And American ASTM E384


Touch Screen Manual Turret Digital Vickers Hardness Tester with Weight Loading

Model: HVS-5THY

product description
● iqualitrol HVS-5/10/30/50THY touch screen digital display Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data Amendment and provide data line report;

● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

● The high-resolution measurement and observation objective lens, combined with the high-definition digital micrometer eyepiece with built-in length encoder, realizes one-key measurement of the indentation diagonal, eliminating human interference and reading errors;

● Convenient operating system, which can automatically convert the unit of the full hardness scale;
● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

● With software hardness value correction function, the hardness value can be directly corrected within a certain range;
● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;

● It has the function of hardness value curve display, which can directly display the change of hardness value;
● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;

● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.


Main Parameters:

Model HVS-5/10/30/50THY
Range of Measurement 5-5000HV
Test Force Loading Mode Weight Loading












Data Entry Mode AUTOMATIC
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HVS-5/10/30THY serial




HVS-50THY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg


Accessories Box:


Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
