Integrated Vision Touch Screen Digital Micro Vickers Hardness Tester PCHVT-1000Z

China Integrated Vision Touch Screen Digital Micro Vickers Hardness Tester PCHVT-1000Z supplier

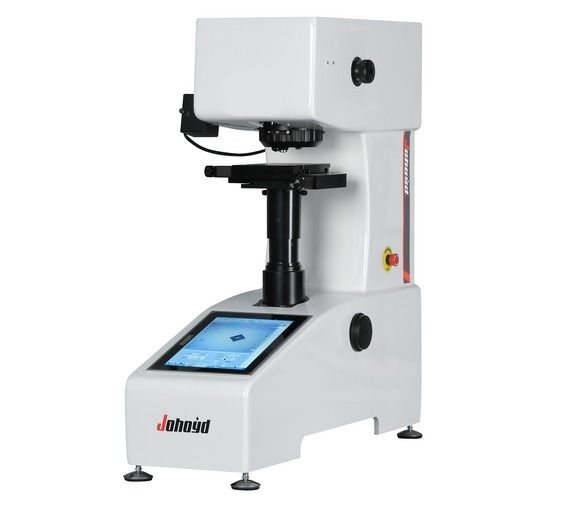

Large Image :  Integrated Vision Touch Screen Digital Micro Vickers Hardness Tester PCHVT-1000Z

Product Details:

Brand Name: IQUALITROL
Model Number: PCHVT-1000Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets/Month
Detailed Product Description
Indentation: Captured By CCD Image Acquisition System Turret: Motorized Turret Between The Objective And The Indenter
Operating System: Integrated Design Of Hardness Tester And Panel Computer, With Windows Operating System Test Report: Save The Measuring Data, Generate The Hardness-depth Curve And Save As WORD Or EXCEL Report
Loading Method: Automatic (Loading/Dwell/Unloading) X-Y Table: Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm



Integrated Vision Touch Screen Digital Micro Vickers Hardness Tester PCHVT-1000Z



Brief Introduction:

PCHVT-1000Z is an IQUALITROL new generation Micro Vickers hardness tester adopts the integrated design of hardness tester and panel computer, all the testing parameters can be selected on the panel computer.



Touch screen makes the operation quickly and conveniently. CCD image acquisition system can show dynamic indentation image, lock the image and automatically get the Vickers hardness value with high precision and stability, and avoid the human errors.



PCHVT-1000Z adopts the integrated design of hardness tester and panel computer, with Windows operating system, it has all functions of computer and can be connected to the output devices such as external screen and printer;



PCHVT-1000Z equips with motorized turret between the objective and the indenter;



The lifting screw of PCHVT-1000Z adopts worm and gear structure with smooth transmission;

PCHVT-1000Z comes with the function of hardness scale conversion;



Automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL report;



Optional digital micrometer X-Y test table makes measurement more precise and realizes the fully automation of Micro Vickers hardness testing.



Application Range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:

Model PCHVT-1000Z
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic Turret
Computer CPU: Intel I3, Memory: 2G, SSD: 32G
CCD Pixel 1.30 Million
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Hardness Reading Indentation Displaying and Automatic Measuring on Touch Screen
Data Output WORD or EXCEL Report with Curve Chart
Objective 10x (Observe), 40x (Measure)
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
Motorized X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 150mm
Throat 120mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 620×233×635mm, Packing Dimension: 650×380×860mm
Weight Net Weight: 48kg, Gross Weight: 62kg



Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Micro Vickers Indenter 1 pc
10x, 40x Objective each 1 pc Weights 6 pcs
Weight Axis 1 pc Cross Test Table 1 pc
Flat Clamping Test Table 1 pc Thin Specimen Test Table 1 pc
Filament Clamping Test Table 1 pc Horizontal Regulating Screw 4 pcs
Level 1 pc Power Cable 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V/15~20W 1 pc
Screw Driver 2 pc Hardness Block 400~500 HV0.2 1 pc
Hardness Block 700~800 HV1 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy
