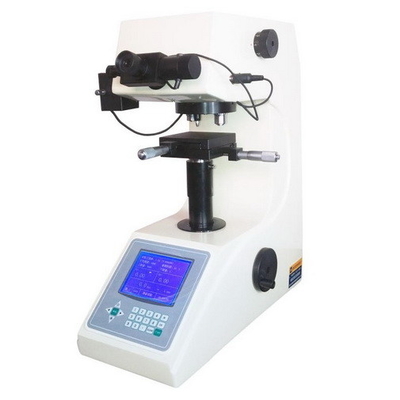

Micrometer Eyepiece Digital Auto Turret Micro Vickers Hardness Tester with built-in length encoder

China Micrometer Eyepiece Digital Auto Turret Micro Vickers Hardness Tester with built-in length encoder supplier

Large Image :  Micrometer Eyepiece Digital Auto Turret Micro Vickers Hardness Tester with built-in length encoder

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-1000AHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Diagonal Line: One-key Measurement Of Indentation Diagonal Line Vision System: Optional CCD Image Processing System
Eyepiece: Micrometer Eyepiece With Built-in Length Encoder Objectives: Measurement And Observation-double Objective Lens Combination
Display: Digital LCD Display, Not Touch Screen Shell: High-quality Cast Iron For One-time Casting



Digital Auto Turret Micro Vickers Hardness Tester with built-in length encoder



Model: HVS-1000AHY



Key Features:

● iqualitrol HVS-1000AHY digital display automatic turret micro-Vickers hardness tester, display the results through the LCD screen, and can display and set the test scale, test force, indenter type, dwell time, conversion unit, etc.



● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

● The worm lifting system greatly improves the test stability and test accuracy, and there is no need to focus again after the test is completed;



● HVS-1000AHY Equips with automatic turret function, high-definition measurement and observation-double objective lens combination, combined with high-definition micrometer eyepiece with built-in length encoder, one-key measurement of indentation diagonal line is realized, which greatly reduces human operation interference and reading error ;



● Convenient numerical control system, which can automatically convert the unit of the full hardness scale;

● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;



● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.





Technical Specifications:



Model HVS-1000AHY
Range of Measurement 5-5000HV
Test Force

0.09807,0.2452,0.4904,0.9807,1.961,2.942,4.904,9.807N

(10,25,50,100,200,300,500,1000gf)

Data Entry Mode Automatic
Turret Mode Automatic
Maximum Height of Specimen 120mm
Depth 110mm
XY Worktable Size 100*100mm
XY Worktable Travel 25*25mm
XY Worktable Resolution 0.01mm
Objectives 10×,40×
Total Magnification 100×,400×
Indentation Measuring Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 530*290*490mm
Weight 45kg





Accessories Box:



XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Vickers Indenter One PC
Standard Vickers Hardness Block Two Blocks
