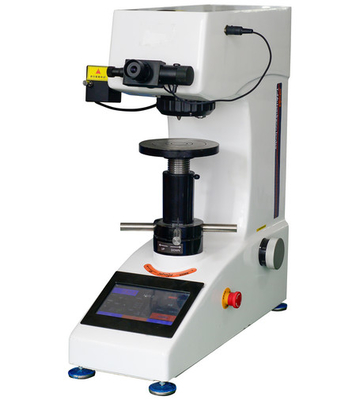

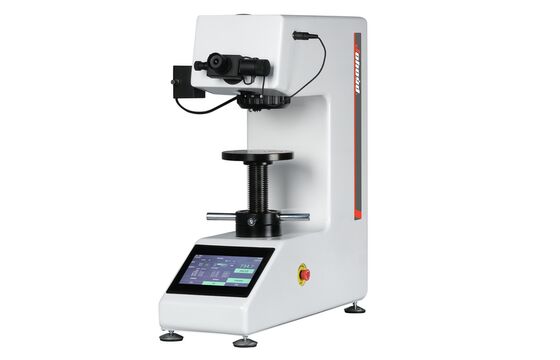

Touch Screen Digital Eyepiece Automatic turret type Vickers Hardness Tester

Touch Screen Digital Eyepiece Automatic turret type Vickers Hardness Tester

Model: HVST-5Z

Product description:

The iqualitrol HVST series digital turret-type Vickers hardness tester meets the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately.

Auto turret can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency.

Technical Parameters:

Main functions and features:

1. The optical system not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.

2. 7-inch touch screen can display test method, test force, upper and lower limit of hardness value, measure indentation length, hardness value, test force retention time, number of measurements and type in year, month and date, test result and data processing;

3, can store up to 100 sets of test data, in the main interface to display the average and the number of test data;

4, the test force unit can manually choose to convert, the conversion unit is: (Kgf, N)

5. The main interface can display 4 conversion scales at the same time, and can be switched: American Standard and International Standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

6, can set the upper and lower limit measurement range, displayed in the main measurement interface;

7, test data can be directly exported via USB;

8. The measuring scale can be converted into HK Knoop hardness;

9, cast aluminum shell molding structure stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;

Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;

Standard configuration:

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate. Optional internal printer, one-click printing of measurement data.
