| Capacity: | Select One From 2, 5, 10, 20, 50, 100, 200kgf | Test Mode: | Stretching, Stripping, Tearing, Cutting, Pulling Force, Fatigue |
|---|---|---|---|
| Travel: | Max 300mm，including Grip | Test Range: | Force Range 1~100%F.S |
| Test Speed: | 0.5～500mm/min | Display: | 5 Inch Touch Screen |

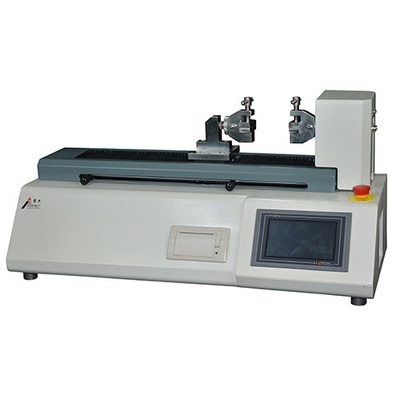

Touch Screen Type Horizontal Tensile Testing Machine
with Max Capacity 200Kgf
Model: iPT-1197
Brief Introduction:
iqualitrol iPT-1197 horizontal tension testing machine is the latest design and development of the company's economic horizontal testing machine, suitable for adhesive products, paper products and printing and packaging, food, electronics, buttons, belt and other industries for stretching, stripping, tearing, cutting, pulling force, fatigue...and so on.
The machine has high cost performance, convenient operation and simple maintenance. It is an ideal equipment for quality testing and production assistance of various factories and enterprises.
Technical Specifications:
| Model | iPT-1197 (advanced version) | iPT-1197 (computer version) |
| Capacity | 2, 5, 10, 20, 50, 100, 200kgf, choose one as max capacity | |
| Display | 5 inch touch screen | |
| Force Accuracy | ±1.0% | |
| Force Resolution | 1/10,000 | |
Measurement Range | 1~100%F.S | |
| Deformation Indicates Value Accuracy | ±1.0% | |
| Test Speed | 0.5～500mm/min,free set | |
| Test Travel | Max 300mm,including grip | |
| Force Unit | kgf,gf ,N,kN,Ibf | |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 | |
| Deformation Unit | mm,cm,in | |
| Stop Mode | Left and right limit safety setting, emergency stop key, program strength and elongation setting, specimen failure sensor | |
| Snap Method | During the test, the function of manually picking points and pre-setting picking points (20 points) is provided | |
| Computer Extension | No | Computer controlled software |
| Standard Configuration | grip 1 pair, micro printer *1, power cord *1, user manual*1, product certificate* 1, warranty card*1 | grip 1 pair, USB flash drive *1, power cord *1, user manual*1, product certificate* 1, warranty card*1 |
| Size | About 70×36×30cm(W×D×H) | |
| Weight | About 30kg | |
| Motor | Stepper | |
| Power Supply | AC220V,50/60Hz,10A, or as specified | |
