Product Details:
Payment & Shipping Terms:
|
| Features: | Stable Rotation, Low Noise, Convenient Operation | Water Cooling: | To Prevent Damage To The Metallographic Structure Due To Overheating |
|---|---|---|---|
| Disc Qty: | Double Disc, Diameter 203mm | Roate Speed: | 50-1000r/min (stepless Speed) |
| Power Supply: | Voltage: 220V Frequency: 50HZ, 550W | Rotate Direction: | Clockwise And Anticlockwise |

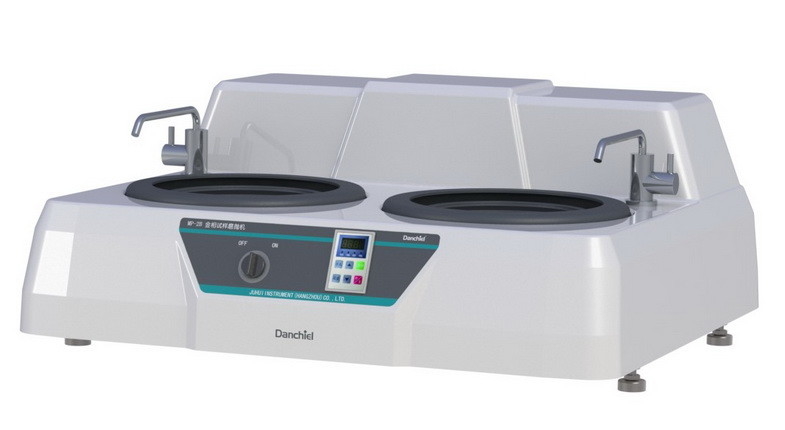

Stepless Speed Double Disc Metallographic Sample Grinding and Polishing Machine
Model: MP-2B
Product overview:
The iqualitrol MP-2B metallographic sample grinding and polishing machine adopts frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc stepless adjustable in the range 50-1000rpm.
The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. The polishing process shows a wider range of applicability.
The double-disc design can be operated by two persons at the same time. The shell adopts integral plastic suction technology. MP-2B has features of stable rotation, low noise, convenient operation and high work efficiency.
It also has a cooling device that can be tested during grinding and polishing. The sample is cooled to prevent damage to the metallographic structure due to overheating of the sample.
Main functions and features:
1,The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. The faucet adopts all-copper chrome plating process, which has good corrosion resistance.
3. Stepless speed regulation, convenient and quick to meet various needs.
4. The double-disc design makes sample preparation more efficient.
5. The grinding and polishing plate can be rotated clockwise or counterclockwise to meet different needs
Technical parameters:
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min (stepless speed) |
| Rotation direction | Clockwise and anticlockwise |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.55KW |
| Appearance size | 730×765×320mm |
| weight | 42Kg |
