| Water Cooling: | To Prevent Damage Due To Overheating Sample Microstructure | Shell Feature: | Novel Appearance, Stable Rotation, Low Noise, Convenient Operation |
|---|---|---|---|
| Display: | High-end Touch Screen | Disc Diameter: | Single Disc, Standard φ203mm |
| Rotation Direction: | Clockwise And Anticlockwise Rotation | Rotate Speed: | 50-1000r/min, Stepless Speed |

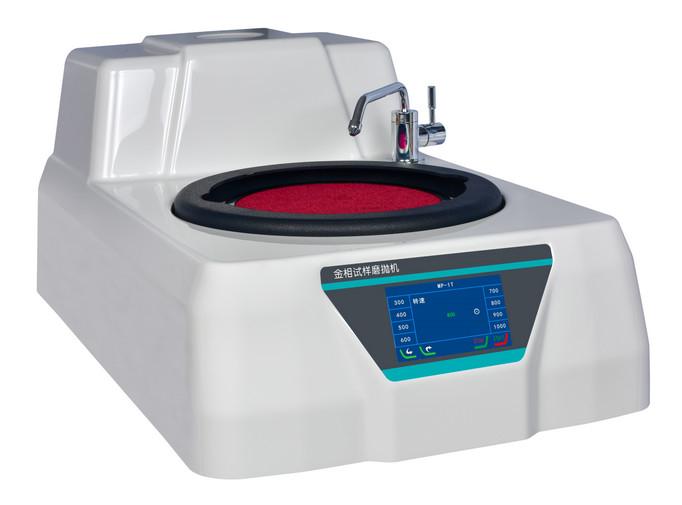

Touch screen single disc metallographic sample grinding and polishing machine
Model: MP-1T
Product overview:
iqualitrol MP-1T metallographic sample grinding and polishing machine adopts a high-end touch screen, which can make the speed of the grinding and polishing disc infinitely adjustable in the range 50-1000r/min.
The grinding and polishing process of the sample can be completed by replacing the metallographic sandpaper and polishing fabric.
The shell adopts integral blister, novel appearance, stable rotation, low noise, convenient operation, high working efficiency, and comes with a cooling device, which can cool the sample during grinding and polishing to prevent damage due to overheating of the sample Microstructure.
Main functions and features:
1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. The faucet adopts all-copper chromium plating process, which has good corrosion resistance.
3. With automatic cleaning function, it can automatically clean the sewage tank to keep the sewage tank clean (optional)
4. Brushless DC motor, stable rotation, low noise, long life (optional)
5. Stepless speed regulation plus eight-speed fixed speed, convenient and quick to meet various needs.
6. Countdown function, the time can be set arbitrarily, and the machine will stop when the time comes. (Optional)
7. The grinding and polishing plate can be rotated clockwise or counterclockwise to meet different needs.
Technical parameters:
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min, Stepless speed |
| Rotating Speed of Grinding Disc | quick set 8 fixed speeds |
| Rotation direction | clockwise and anticlockwise rotation |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.25KW |
| Appearance size | 730×420×320mm |
| weight | 35Kg |
