| Plate Speed: | Stepless Speed Regulation 100-1000r/min | Sample Size: | Thickness 8-22mm(customizable), Diameter 30mm |
|---|---|---|---|
| Polishing Head: | Clamp 4 Samples Simultaneously | Head Lock: | Automatic Grinding Head Locking Method |
| Disc Diameter: | Double Disc, Standard φ254mm | Pressure: | Single Point Pneumatic Pressure |

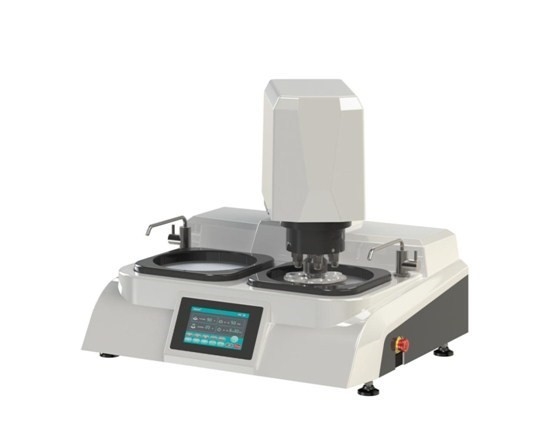

Single Pneumatic Automatic Metallographic Specimen Grinding and Polishing Machine Clamp 4 Samples simultaneously
Model: HMP-2C
Product overview:
Iqualitrol HMP-2C is a double-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It is controlled by a high-end touch screen, the grinding and polishing plate is driven by a three-phase silent motor, and a V-belt is used for transmission.
Iqualitrol HMP-2C grinding head is driven by a stepping motor and a synchronous belt is used for transmission.
Iqualitrol HMP-2C has the characteristics of stable rotation, low noise, safety and reliability; Adjust the rotation speed of the grinding head and the grinding and polishing plate, set the pressure and sample preparation time by yourself, to adapt to different needs; built-in lighting system, convenient to take and place the sample; built-in cooling device, can cool the sample during grinding, In order to prevent damage to the metallographic structure due to overheating of the sample.
Iqualitrol HMP-2C is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.
Technical parameters:
| Product model | HMP-2C |
| Number of grinding discs | 2 |
| Diameter of grinding and polishing disc | 254mm |
| Rotation speed of grinding and polishing plate |
Stepless speed regulation 100-1000r/min Four-speed speed regulation 300 500 800 1000r/min |
| Rotation direction of grinding and polishing disc | Two-way forward and reverse |
| Rotation direction of grinding head | clockwise |
| Rotating speed of grinding head | 0—120r/min |
| Grinding head motor | Stepping motor 200W |
| Grinding head locking method | Automatic |
| Timing adjustable time | 0-99min |
| Pressure method Center | Single point pneumatic pressure |
| Pressurized pressure | 0-0.5Mpa(Commonly used 0.2-0.3Mpa) |
| Number of specimen clamps | 4pcs |
| Clamping sample thickness | 8-22mm(customizable) |
| Specimen clamping specifications | Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized) |
| power supply | 220V 50Hz |
| Appearance size | 755*660*710mm |
| weight | 100kg |
