| Model: | GX-2515 | Stage Travel: | X*Y = 250*150mm |
|---|---|---|---|
| Movement Driven: | Ball Screw Drive | Accuracy: | ≤(3+L/50)um |
| Camera: | 1/3" Color CCD Camera | Magnification: | 30X~230X |

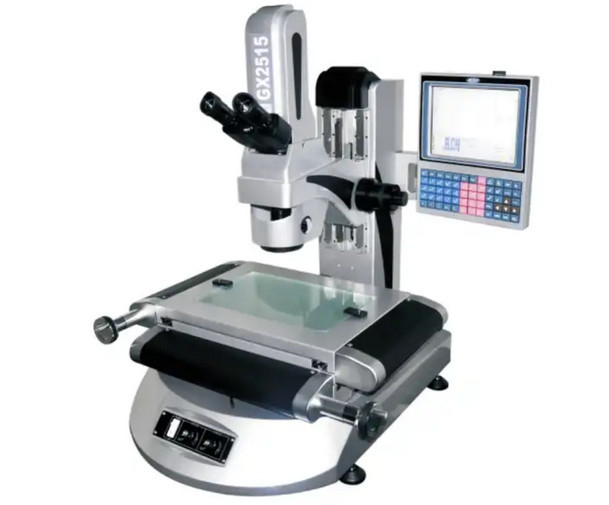

Non-contact High-power Metallurgical System GX-2515 for Precision Measurement
Key Features:
1, High-power Metallurgical Measuring System;
2, Non-contact Observation & Measuring;
3, Multi-view Rotate Stage Objectives;
4, Widely used for crystal, integrated circuit examination and precision measurements;
5, Imaging from optical entity; providing with various objectives optional of 2X, 4X, 6X, 8X, 10X and 15X magnification. The objectives can be conveniently changed; owning humanistic operating system.
Main Performance Technical Specification:
| Model | GX2515-IIN | GX2515-IIA | |
|
STAGING WORKBENCH |
X-axis Travel stage(mm) | 250 | 250 |
| Y-axis Travel stage(mm) | 150 | 150 | |
| Z-axis Travel stage(mm) | 150 | 150 | |
| Dimension(L*W*H)(mm) | 929*612*1082 | 685*613*830 | |
| Motor Movement | Ball Screw Drive | ||
| X, Y, Z digital resolution | 0.0005mm | ||
| X, Y sit mark error | ≤(3+L/50)um | ||
| Video | Camera | 1/3" Color CCD Camera | |
| Zoom Lens | 0.7~4.5X | ||
| Video Total Magnification | 30X~230X | ||
| Image Resolution | 640*480 | ||
| IILUMINATION | Transmission illumination | 24V/20W halogen tungsten lamp | |
| light source | 12V LED ring lamp with laser point reflection lighting | ||
| Power supply | 180V(AC)~260V(AC) 50HZ | ||
| Measuring software | Q UICK MEASURING | ||
| Magnification of objective lens | 1X (standard), 2X (optional) | ||
| Eyepiece magnification | 10X | ||
| Total magnification | 10X-50X | ||
| Magnification error of objective lens | ≤0.08% | ||
| X, Y, Z to resolution | 0.0005mm | ||
| X and Y sit - marked value error | ≤(3+L/200)μm | ||
