| Screen: | Diameter 350mm | X-Y Travel: | 200*100mm |
|---|---|---|---|
| Image: | Reverse | Accuracy: | (3+L/75)μm |
| Load Capacity: | 5kg | Digital Readout: | DP100 |

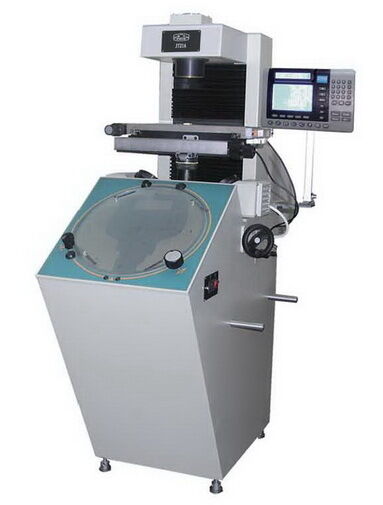

Φ350mm Digital Measuring Profile Projector JT21A with DP100
Features and Application Range:
The iqualitrol JT21A can test effectively profile, section and surface shapes of various complex work-pieces, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc.
Owing to its front-inclined projecting screen, so it is also suitable for comparative measurement and test, such as projecting image's portray and observation of work-piece's profile and shape etc.
The iqualitrol JT21A is widely used in workshops and measuring station of those industries: Machinery, instruments & meters, watches, molds and electronics and so on.
Technical Specifications:
| Model | JT21A |
| Projection Screen | φ350mm |
| Rotation Range | 0°~360° |
| Resolution of the rotary angle | 1′ |
| Accuracy of the rotary angle | 4′ |
| Objective Magnification Power | 5X 10X 20X 50X |
| Objective Visual Field | φ70mm φ35mm φ17.5mm φ7mm |
| Objective Working Distance | 163.1mm 89.05mm 57.2mm 58mm |
| Error of magnification | 0.08% |
| Range of X-coordinate (mm) | 200mm |
| Range of Y-coordinate (mm) | 100mm |
| Z -coordinate (Focusing)(mm) | 0~100mm |
| Worktable area | 380mm×230mm |
| Resolution | 0.001mm |
| Image | Reverse |
| Accuracy of Instrument | (3+L/75)μm |
| Load Capacity | 5kg |
| Overall Size(mm) | 854×480×1401 |
| Transmission Lighting | 12V 100W Halogen tungsten lamp |
| Reflecting Lighting | 12V 100W Halogen tungsten lamp |
| Rated Voltage | AC220V/50HZ/1PH |
| Mainframe Weight | 138kg |
