High Precision Efficient Instant Vision Measuring Machine FOV 95x80mm KS-YJ80A

China High Precision Efficient Instant Vision Measuring Machine FOV 95x80mm KS-YJ80A supplier

Large Image :  High Precision Efficient Instant Vision Measuring Machine FOV 95x80mm KS-YJ80A

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: KS-YJ80A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: KS-YJ80A Lens: Telecentric Optical System
FOV: 95x80mm Accuracy: ±0.005mm
Software: AOS-CHECK Camera: 5MP CCD

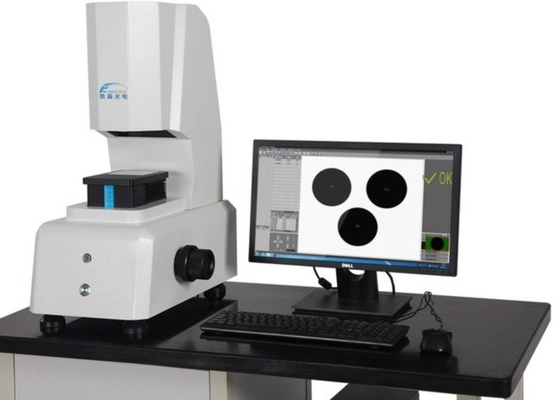

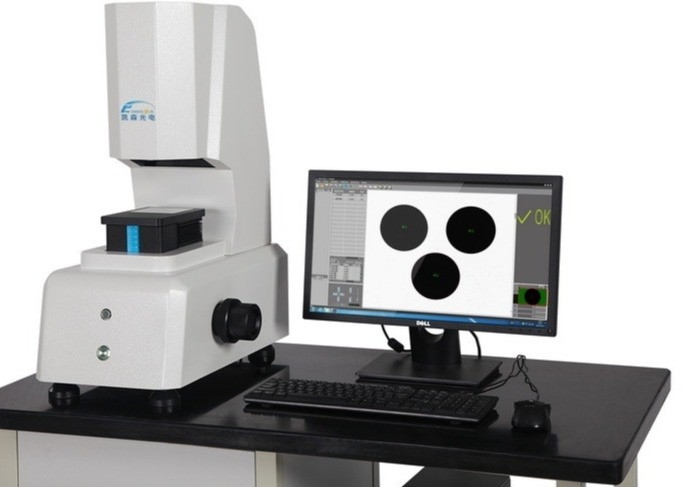

High-precision Efficient Instant Vision Measuring Machine with FOV 95x80mm KS-YJ80A


Model: KS-YJ80A


Technical Data Download: iqualitrol Instant Vision Measuring Machine KS-YJ80A


Brief Introduction:

iqualitrol KS-YJ80A obtains a profile of the whole part first, upon which measurements are carried out. This is possibly by our experience and expertise in high-performance optics. This allows an operator to simply place the part on the stage and hit measure to perform hundreds of measurements in seconds.


iqualitrol KS-YJ80A has advantages compare with conventional quality inspection instruments, it perform high precision measurements, automatically record data and generate report with the push of a button.


Optical comparators, measuring microscopes, and optical CMMs are popular as instruments that use images for measuring the dimensions of a target. These instruments capture an image of a target, identify the edges to be measured based on human vision (or automatic recognition), measure the movement of the XY stage, and obtain the dimensions of the target.



1, Measurement results are automatically recorded and generate reports. All measurement results and critical identifiers are automatically recorded to simplify data management, then calculates and displays critical statistical values.


2, Image dimension measurement system features simple place and press operation, provides both incredible measurement speed and high measurement accuracy.

Simply please a target on the stage and press the measurement start button, then system executes measurement of a number of points in the captured image in only seconds.


3, The KS Series obtain an image of the part using its unique wide-field, high-precision telecentric optical system. The telecentric optical system features constant image size regardless of height differences, large depth-of-field for sharp focus at various heights, and no image distortion despite part placement on stage.


The edges (boundaries between bright and dark areas) of the captured image are accurately detected using our sub-pixel processing (to 1/100th or less of a pixel) upon which defined measurements are performed in seconds.


Technical Specification:

Model KS-YJ30A KS-YJ60A KS-YJ80A
Video Sensor 5MP CCD
Lens wide-field, high-precision telecentric optical system
Field of View 25x20mm 80x60mm 95x80mm
Accuracy ±0.002mm ±0.004mm ±0.005mm
Repeatability ±0.001mm ±0.001mm ±0.0015mm
Net Weight 25Kg 50Kg 50Kg
Dimension 600×400×750 650×430×950 650×430×950
Illumination Parallel surface and contour light
Software AOS-CHECK
Computer Intel I5, CPU 4G
Monitor 21.5” LCD
Work Environment 25℃±2℃, Humidity 20-80%RH
Measuring Time Less than 5 seconds (within 100 measurements)
Software Function Measure point, line, circle, arc, angle, distance, etc the basic functions
Auxiliary Function Line cross, parallel, perpendicular, tangency, etc.
Geometric Tolerance Position tolerance, form and position tolerance, dimensional tolerance
