| Model: | JT5-3020 | Objectives: | 10X, 20X, 25X, 50X |
|---|---|---|---|
| X-Y Travel: | 300*200mm | Accuracy: | (4+L/50)μm |
| Transmission Lighting: | 24V 250W Halogen Tungsten Lamp | Reflecting Lighting: | 16V 150W Incandescent Lamp |

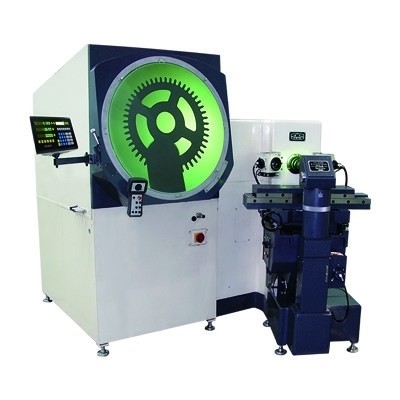

Floor Type Diameter 800mm Large Screen Measuring Profile Projector
With Rotary Worktable
Technical Data Download: iqualitrol Measuring Profile Projector JT5
PURPOSE:
Large measuring range for its horizontal structure and large worktable, and it can measure special work piece for its worktable can swag. It is widely used in the industrial departments of electron, textile, machine and instrument manufacture etc.
Features:
1, Little error during the measurement for its special light source structure;
2, Easy to measure for its worktable are droved by motor;
3, High accuracy and easy to find the center point;
4, equipped with a rotary worktable which is convenient for the measurement of gear work piece;
5, The worktable can spin at the angle of ± 15° N. And is convenient for the measurement of the measured pieces with helical angle. This instrument can measure effectively surface and profile of various work pieces with complicated profile and shapes, such as punching piece. Gear template. Thread.
Specifications:
| Model | JT5-3020 |
| Projection Screen | φ800mm |
| Rotation Range | 0°~360° |
| Resolution of the rotary angle | 1′ |
| Rotation division value of projection screen | 1° |
| Objective Magnification Power | 10X 20X 25X 50X |
| Objective Visual Field | φ80mm φ40mm φ16mm φ8mm |
| Objective Working Distance | 206mm 123.5mm 85mm 78mm |
| Error of magnification | |
| Range of X-coordinate (mm) | Longitudinal 300mm |
| Range of Y-coordinate (mm) | Vertical 200mm |
| Z -coordinate (Focusing)(mm) | Transverse 80mm |
| Worktable area | 630mm×200mm |
| Resolution | 0.0005mm |
| Image | Reverse |
| Accuracy of Instrument | (4+L/50)μm |
| Load Capacity | 50kg |
| Overall Size(mm) | 2130×1800×1950 |
| Transmission Lighting | 24V 250W Halogen tungsten lamp |
| Reflecting Lighting | 16V 150W Incandescent lamp |
| Rated Voltage | |
| Mainframe Weight | 1900kg |
| Tailstock rack | Max diameter φ200mm |
| Tailstock rack | Max length φ300mm |
