Turret Three Lens Digital Measuring Vertical Profile Projector JT14 with 12" Screen

China Turret Three Lens Digital Measuring Vertical Profile Projector JT14 with 12" Screen supplier

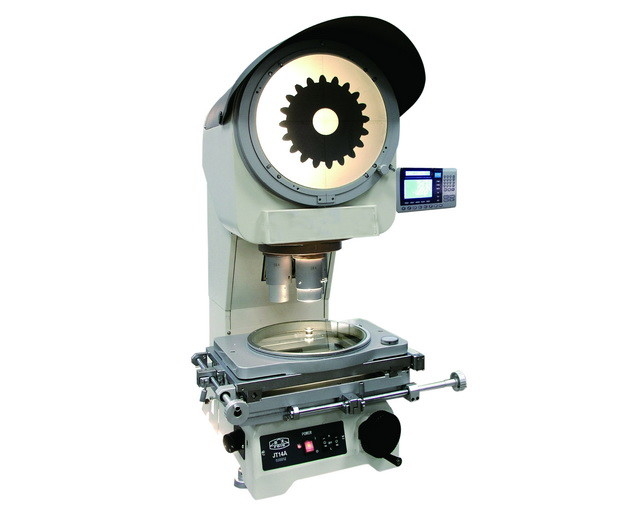

Large Image :  Turret Three Lens Digital Measuring Vertical Profile Projector JT14 with 12" Screen

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: JT14

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 5 Sets per Month
Detailed Product Description
JT14A (Erect): Large Working Distance Of Objective, Large Worktable Area And Large Range Of Size JT14B (Reverse): Widely Used In Machine Manufacturing Industry, Measuring Instrument Industry, Watch-making Industry
Illumination: Surface Illumination Is Symmetry And Bright, Image Is Clear Worktable: The Movement Of Precision Worktable Is Comfortable And Convenient
Lens Turret: Convenient Exchanging Magnification And A Precise Location Magnification: Objectives 10X, 20X, 50X


Turret Three Lens Digital Measuring Vertical Profile Projector JT14 with 12" Screen


Application ranges:

iqualitrol JT14 series can measure various profile, section and surface shape of complex workpiece effectively, such as the Template, the punching piece, the cam, the gear, the matrix, the thread, the forming cutter, the mercerize, The cutter.


It can be widely used in machine manufacturing industry, measuring instrument industry, watch-making industry, would producing industry, electron industry and relative metering station in factory.

-It has a large working distance of objective, large worktable area and large range of size.
-Surface illumination is symmetry and bright and the image is clear.

-The shape of high precision worktable is novel and beautiful, and it's movement is comfortable and Convenient.
-The up-down projecting box adopting the advanced guide system replaces the traditional up-down Operating platform and it has a large coordinate range of Z axis.

-It adopts contour illumination and surface illumination system, light intensity can coordinate when Magnification was changed for the purpose of reduce difference of luminance on the screen when Transfer high magnification and low magnification of objective lens.

-It has three turrets, a convenient exchanging magnification and a precise location.
-It has a exquisitely shape and is convenient to use.

Technical Parameters:
-Screen diameter: Φ300mm
-Rotation range of screen: 0°~360°
-Indicator scale of rotating angle: 1'
-Accuracy of rotating angle: 6'
-Objective lens


Magnification View-field on object(mm) Working distance(mm)
10X, fov Φ30, WD 74
20X, fov Φ15, WD 69
50X, fov Φ 6, WD 63

-Magnification error 0.08%
-3 Kind of workstages
Table size X coordinate(mm) Y coordinate(mm) Z coordinate(mm)
350 X 240 150 100 100
400 X 280(standard) 200 150 100
450 X 286 250 150 100

-Linear scale resolution: 0.001mm
-Accuracy of X, Y axis: (4+L/25) μm, L unit: Mm
-Load of worktable: 15kg
-Illumination Source:
Contour illumination: 24V150W halogen tungsten lamp
Surface illumination: 24V 150W halogen tungsten lamp
-Cooling system: Two high speed axial flow fan can lead to strong heat radiation.
-Power: 110V/220V (AC), 50/60Hz
-Machine dimensions: 410*650*970~1070mm
-Machine weight: 90kg



Model JT14A/JT14B
Projection Screen φ300mm
Rotation Range 0°~360°
Resolution of the rotary angle 1′
Accuracy of the rotary angle 6′
Objective Magnification Power 10X 20X 50X 100X
Objective Visual Field φ30mm φ15mm φ6mm φ3mm
Objective Working Distance 74mm 69mm 63mm 41mm
Error of magnification 0.08%
Range of X-coordinate (mm) 150mm 200mm 250mm
Range of Y-coordinate (mm) 100mm 150mm 150mm
Z -coordinate (Focusing)(mm) 0~100mm
Worktable area 350×240 400×280 450×286
Resolution 0.001mm
Image Erect(JT14A) ReverseJT14B)
Accuracy of Instrument (4+L/25)μm
Load Capacity 10kg 15kg 20kg
Overall Size(mm) 410×650×1070
Transmission Lighting 24V 150W Halogen tungsten lamp
Reflecting Lighting 24V 150W Halogen tungsten lamp
Rated Voltage
Mainframe Weight 90kg
