Model: KS-YJ120A FOV: 138*110mm
Accuracy: ±8μm Max Load: 6KG
Feature: No Human Errors Dimension: 900×600×1860mm

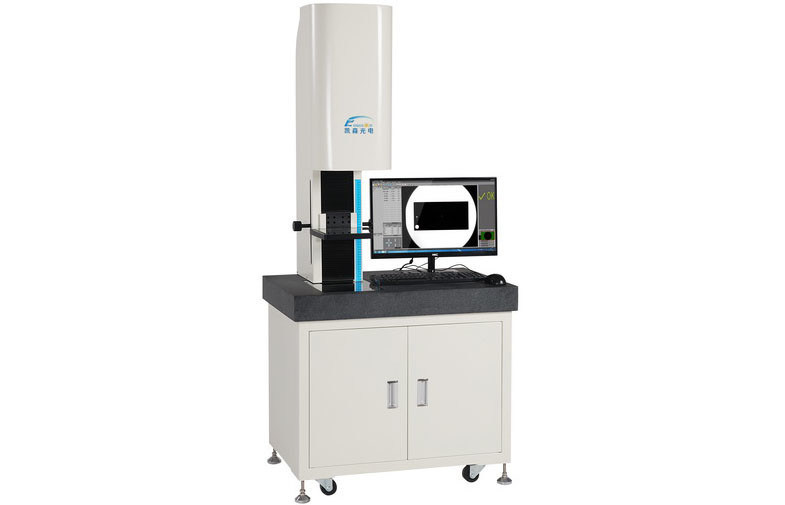

Place And Press Operation Innovative 2D Measuring Instrument FOV 138*110mm KS-YJ120A


Model: KS-YJ120A


Brief Introduction:

Instant vision measuring system is a completely innovative measuring instrument designed around simple Place and Press operation. It allows anyone, regardless of expertise and skill level, to easily, quickly, and accurately perform hundreds of measurements in just seconds.


KS-YJ120A obtain a profile of the whole part first, upon which measurements are carried out. This is possibly by our experience and expertise in high-performance optics. This allows an operator to simply place the part on the stage and hit measure to perform hundreds of measurements in seconds.


KS-YJ120A has advantages compare with conventional quality inspection instruments, it perform high precision measurements, automatically record data and generate report with the push of a button.



1, Speedy, available to measure multiple specimens, after placed specimens on stage, just one touch can measure all the dimensions in a few seconds, it overturns the traditional optical measuring methods.


2, No human errors, same result measured by anyone.

3, Simple, anyone can measure smoothly after short training.


4, Specimens can be put randomly, no need fixture.

5, Automatically generate report by Excel, Word, txt.


6, Integrated design, nice appearance, the main frame apply aviation aluminum alloy and granite to ensure stability.

7, Powerful measuring software and accurate arithmetic to get accurate measuring results.


8, Apply large filed of view telecentric lens, can measure all dimensions even big specimens.


Technical Specifications:

Model KS-YJ120A KS-YJ170D
Field of View 138*110mm 170*150mm
Measuring Accuracy ±8μm ±10μm



±2μm ±3μm
Dimension 900×600×1860mm 900×600×1860mm
Weight 200KG 200KG
Max Loading 6KG 8KG
Image Sensor 12M pixel CCD

Bilateral Telecentric Lens


Illumination Bottom Coaxial Light and Surface LED Ring
Measuring Software AOS-CHECK 2.0
Computer Configuration Intel CPU I3, RAM 4G
Monitor 21.5” LCD
Signal Export Judge and Export PASS, FAIL, NULL
Working Environment 25℃±2℃, 20%-80%RH
Measuring Speed Less than 5 Seconds (within 100 dimensions)
Measuring Basic Function Measurement of point, line, circle, angle distance, rectangle and screw thread, etc.
Combination Function Intersection, parallel, divide, tangency, perpendicular
Geometric Tolerance Dimensional tolerance, position tolerance, Geometric Tolerance
Power Consumption 80W
Voltage AC100-240V 50/60Hz
