| Accuracy: | ≤3+L/200(um) | Video: | 1/3” Color CCD Camera |
|---|---|---|---|
| Lens: | 0.7～4.5x Detented Zoom Lens | Magnification: | 30X～190X |
| Highlight: | vision measurement system,visual measuring machine |
||

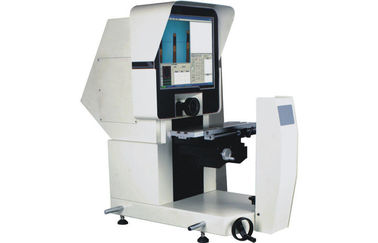

Horizontal Video Profile Projector With 19" Touch Screen Quickmeasuring 2.0 Software
Key Features:
1, Solid framework,large LCD touch screen and advanced QM2.0 software;
2, High quality optics for crisp and clear images;
3, Adjustable LED surface and contour illumination;
4, High resolution industrial CCD camera;
5, 6.5X Detented zoom lens changeable within the range of 30-190x magnification.
6, Extended function of printing,saving and exporting data;
7, Excel or Word report output,and DXF input and output;
8, Non-contact optical height measurement, Automatic edge-detecting function;
Technical Specifications:
| Model | HTV-3015 | HTV-3020 |
| X/Z-axis Travel | 300×150mm | 300×200mm |
| Y-axis Travel | 125mm | 125mm |
| Accuracy | ≤4+L/200(um) | |
| Repeatablitily | ±2um | |
| Operation Mode | Manual | |
| Sway Range | ±15” | |
| Video Device | 1/3” color CCD camera,6.5x Detented zoom lens | |
| Screen Dimension | 19” LCD Touch Screen Monitor | |
| Video Magnification | 30X～190X(it can extend to 15X～380X) | |
| Working Distance | 92mm | |
| Measuring Software | Quick Measuring 2.0 | |
| Max.Load Capacity | 15Kg | |
| Suitable Environment | Workshop and metrology room | |
| Dimension(D×W×H) | 760×650×1760mm | |
| Net Weight | 200Kg | |
Standard Delivery:
| Measuring Software | Color CCD Camera | Detented Zoom Lens |
| Calibration Block | Capture Card | LED Illumination |
| 19” LCD Touch Screen | Built-in PC System | Operation Manual |
