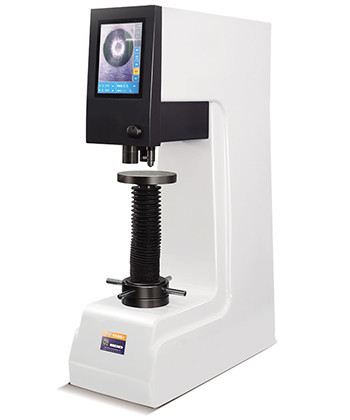

Visual Touch Screen Brinell Hardness Testing Machine With Built In Measure Software

China Visual Touch Screen Brinell Hardness Testing Machine With Built In Measure Software supplier

Large Image :  Visual Touch Screen Brinell Hardness Testing Machine With Built In Measure Software

Product Details:

Brand Name: iqualitrol
Model Number: VHBS-3000T

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: VHBS-3000T Fuselage Structure: High-quality Cast Iron For One-time Casting
Turret: Equipped With Automatic Turret Function, Automatic Switching Between Indenter And Lens Hardness Conversion: Built-in Hardness Conversion Scale, Which Can Automatically Convert The Unit Of The Full Hardness Scale
Closed-loop Control: Realizes The Automatic Operation Of Loading, Dwell And Unloading Double Objectives: Measure Indentations Of Different Diameters Under The Standard Test Force From 31.25-3000kgf



Visual Touch Screen Brinell Hardness Testing Machine with Built-in Measure Software



Model: VHBS-3000T



Technical Specifications of VHBS-3000T:

Model VHBS-3000T

Range of

Measurement

5-650HBW
Test Force

306.25N, 612.9N, 980.7N, 1225.9N, 1838.8N, 2415.8N, 4903.5N, 7355.3N, 9807N, 14710.5N, 29421N

(31.25, 62.5, 100, 125, 187.5, 250,
500, 750, 1000, 1500, 3000kgf)

Maximum Height of Specimen 260mm
Distance between Indenter Center and Wall 165mm
Objectives 1X, 2X
Magnification 20X, 40X
Hardness Resolution 0.1HBW
Camera 3MP
Dwell Time 0-99 Seconds, adjustable
Indentation Measure Manually Measure Indentation Diameter
Power Supply AC 220V/50Hz
Dimension 700*300*930mm
Weight 140kg
