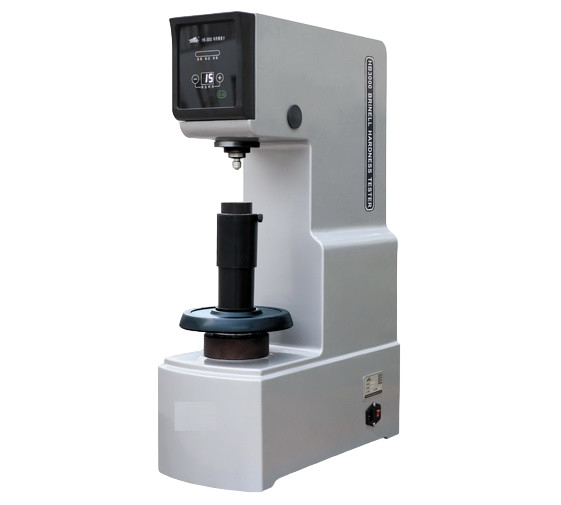

Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm

China Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm supplier

Large Image :  Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HB-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: HB-3000 Q1-Test Buttons: Black Crystal Touch Screen Button With Long Life
Standards: GB/T 230.2, ISO 6508-2 , ASTM E18 And JIS Z2245 Test Space: 220mm * 125mm
Loading: Weights Loading Magnification: 20X With Resolution 0.01mm



Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm



Main features:

Black crystal touch screen button with long life;

Precision coating, weight loading,stable structure and no deformation;

Ability to work in harsh environments;

Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 , ASTM E18 and JIS Z2245.



Applications:

It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys,etc.



Technical Parameters:

Measuring range: 8-650HBW
Test force 1838.8,2415.8,7355.3,9807,29421N(187.5,250,750,1000,3000kgf)
Max. height of test piece 220mm
Depth of Throat 125mm
Dimensions: 832×710×243mm
Voltage AC220V/50HZ
Weight 125kg
