Bridge Type Digital Brinell Hardness Tester HBMS-3000C with Brinell Vision Measuring Software

China Bridge Type Digital Brinell Hardness Tester HBMS-3000C with Brinell Vision Measuring Software supplier

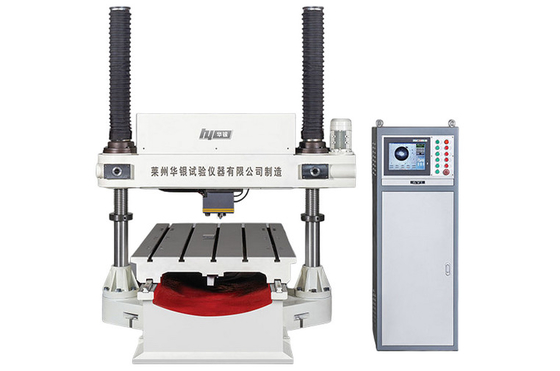

Large Image :  Bridge Type Digital Brinell Hardness Tester HBMS-3000C with Brinell Vision Measuring Software

Product Details:

Brand Name: iqualitrol
Model Number: HBMS-3000C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 5 Sets per Month
Detailed Product Description
Model: HBMS-3000C Test Report: Test Report Can Be Output And Printed In Word Or Excel Format
Indentation Measuring: Automatically Capture Indentation, Automatically Measure Indentation Diameter, Automatically Display Hardness Value Loading Control: One-button Start, Automatically Complete Loading-dwell-unloading, The Indenter And Camera Automatical Turret



Bridge Type Digital Brinell Hardness Tester HBMS-3000C with
Brinell Vision Measuring Software



iqualitrol HBMS-3000C uses CCD image measurement technology and has the following enhanced functions:



1, Automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can generate report;



2, One-button start, automatically complete loading-dwell-unloading, the indenter and camera automatically switch positions, automatically perform indentation measurement and hardness value display, the test process is automated, and there is no human error;



3, The test report can be output and printed in Word or Excel format;

Chinese and English language interface conversion; various hardness value conversion;



4, With database storage data function, test data is stored synchronously and can be exported;

Equipped with RS232 interface, it is convenient for users to process data;



5, The accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.



Technical Specifications:

Brinell Hardness Ranges 16-650HBW
Loading Force

4903.5, 7355.3, 9807, 14710.5, 29421(N)

500, 750, 1000, 1500, 3000(kgf)

Brinell Scales HBW5/750, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Max Specimen Height 950mm (customizable)
Horizontal Travel of structure 650mm (customizable)
Workbench Dimension 1500X1000mm (customizable)
Workbench Travel 1000mm (customizable)
Pillar Distance 1350mm (customizable)
Workbench Loading Weight Less than 5000Kg (customizable)
Power supply AC220V/50Hz
Overall size 2000x1800 x 2180mm (customizable)
Net weight 3000Kg (customizable)


Scope of application:

1, Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;



2, Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
