Bridge Type Brinell Hardness Tester HBM-3000B for Large Heavy Specimens

China Bridge Type Brinell Hardness Tester HBM-3000B for Large Heavy Specimens supplier

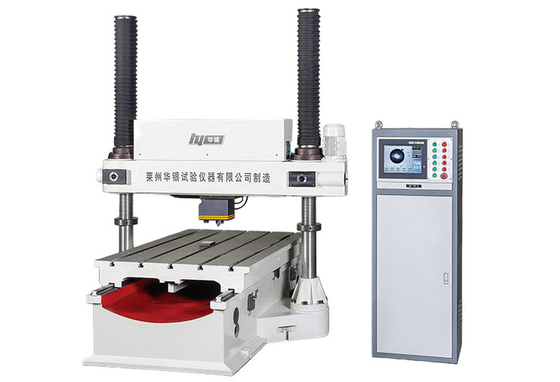

Large Image :  Bridge Type Brinell Hardness Tester HBM-3000B for Large Heavy Specimens

Product Details:

Brand Name: iqualitrol
Model Number: HBM-3000B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 5 Sets per Month
Detailed Product Description
Model: HBM-3000B Force Loading: Stable And Impact-free
Control System: Fully Automatic Closed-loop Pressure Sensor Control System Structure: One-time Casting, Stable, Reliable And Durable



Bridge Type Brinell Hardness Tester IQUALITROL HBM-3000B
for Large Heavy Specimens



Technical Specifications:

Brinell Hardness

Ranges

16-650HBW
Loading Force

4903.5, 7355.3, 9807, 14710.5, 29421(N)

500, 750, 1000, 1500, 3000(kgf)

Brinell Scales HBW5/750, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Max Specimen Height 950mm (customizable)

Horizontal Travel

of structure

650mm (customizable)
Workbench Dimension 1500X1000mm (customizable)
Workbench Travel 1000mm (customizable)
Pillar Distance 1350mm (customizable)

Workbench Loading

Weight

Less than 5000Kg (customizable)
Power supply AC220V/50Hz
Overall size 2000x1800 x 2180mm (customizable)
Net weight 3000Kg (customizable)


Main Features:

1, The test force loading mechanism designed by applying Pascal's law, stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;



2, The test force loading mechanism, pressure sensor and Brinell spindle pressure head are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit;



3, Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of test force loading and unloading, high force value accuracy;



4, The machine base, mobile workbench and crossbeam follow the IQUALITROL traditional process technology, one-time casting, stable, reliable and durable;



5, Strong structure, good rigidity, reliable, durable and high test efficiency;

Gantry frame, large mobile workbench, equipped with linear guide rails, front and rear moving range of 1000mm, maximum allowable height of test piece 950mm; spindle lateral moving range of 620mm; especially suitable for measuring the Brinell hardness of large workpieces;



6, Integrated touch screen industrial computer, visual operation interface, set various test conditions on the computer;

The test force is applied-maintained-removed automatically; the test process is automated, the operation is simple, and there is no human error;



7, HBM-3000B uses a reading microscope to measure the hardness value. There is no CCD measurement part at the indenter position in the picture;



Scope of application:

1, Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

2, Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;



3, Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

4, Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
