| Model: | ASR-LN400 | Heating Rate: | 2℃～4℃/min, |
|---|---|---|---|
| Temp Range: | -40℃~ambient Temperature, High Temperature Chamber: 150℃, Humidity 90%RH | Observation Window: | Three-layer Vacuum Glass, Easy To Observe The Test Product |

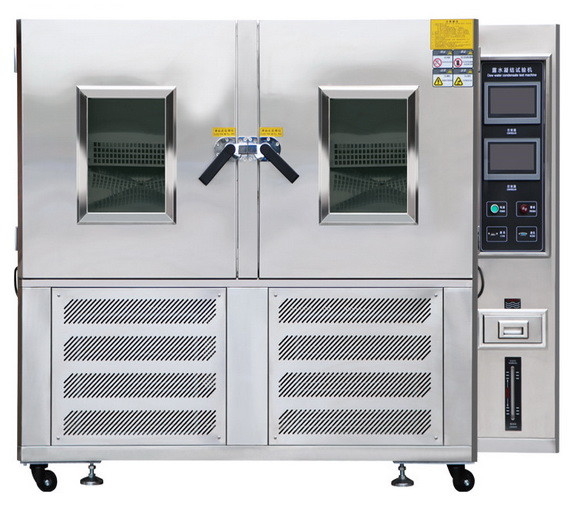

Touch Screen Controller Dew Condensation Test Chamber with Observation Window
Brief Introduction:
The dew condensation test chamber, also known as the environmental test machine, can accurately simulate complex natural environments such as low temperature, high temperature, and constant temperature.
It is suitable for quality control inspections in electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, building materials, research institutes, inspection and quarantine bureaus, universities and other industries.
Equipment Features:
1. Design: arc shape and surface spraying treatment (SUS 304# stainless steel does not need spraying treatment), high-quality appearance, and flat non-reaction handles, easy to operate, safe and reliable.
2. Bright, large observation window with a wide field of view: using three-layer vacuum-coated windows and Philips energy-saving fluorescent lamps, no wiper defog, maintain clear observation, and observe the condition of the test product at any time.
3. Advanced and reliable refrigeration and control system: imported European and American fully enclosed compressors, imported environmentally friendly refrigerants, imported refrigeration devices, imported LCD touch screen controllers, friendly interface, simple and easy to learn.
4. It has power failure stop function, power failure cold start function, and power failure hot start function. With fault alarm and test end alarm.
Compliance with standards:
Performance indicators meet the requirements of GB5170, 2, 3, 5, 6-95 "Basic parameter verification method for environmental test equipment of electrical and electronic products, low temperature and high temperature test equipment"
Basic environmental test procedures for electrical and electronic products Test A: Low temperature test method GB 2423.1-89 (IEC68-2-1)
Basic environmental test procedures for electrical and electronic products Test B: High temperature test method GB 2423.2-89 (IEC68-2-2)
Basic environmental test procedures for electrical and electronic products Test Da: High and low temperature alternating test method GB/T423.4-93 (IEC68-2-30)
Technical Specifications:
| Test chamber dimensions | Inner dimensions: Height 600*Width 600*Depth 600mm*2 |
| Temperature range | -40℃~ambient temperature, high temperature chamber: 150℃, humidity 90%RH |
| Power supply | AC380V, 9KW |
| Heating rate | 2℃～4℃/min [from room temperature to high temperature, non-linear no-load) |
| Cooling rate |
0.7℃～1.0℃/min [from room temperature to high temperature, non-linear no-load)
|
| Temperature fluctuation | ±0.2℃ |
| Temperature uniformity | ±1.0℃ |
| Sealing performance | Double-channel insulation and airtightness, effectively isolating the heat exchange inside and outside the box |
| Observation window | three-layer vacuum glass, easy to observe the test product |
| Lighting design | high-brightness window lighting, easy to observe the test product |
| Test hole | Diameter 50mm on the left side of the body, with 1 stainless steel hole cover |
