Product Details:
Payment & Shipping Terms:
|
| Temp Range: | Support Limitation -60℃~+150℃ | Heating Rate: | 5℃/min, 10℃/min, 15℃/min Linear |
|---|---|---|---|
| Humidity Range: | 10%R.H~98%RH (humidity Working Range +10℃~90℃) | Cooling Method: | Air Cooling (or Water Cooling) |
| Chamber Material: | SUS#304 Stainless Steel + Cold Plate Electrostatic Spray Paint | Water Supply: | Large Water Tank + Automatic Water Replenishment Device |

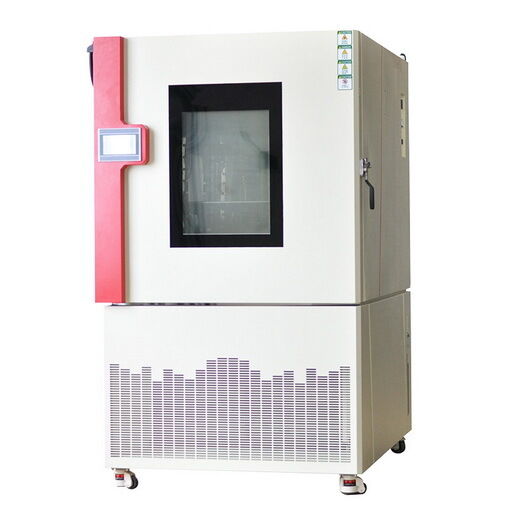

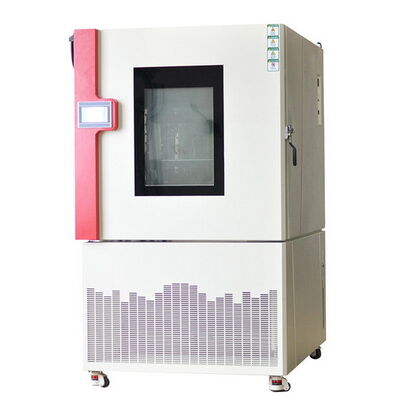

Rapid Temperature Test Chamber ESS Screening Chamber QTH-300SC
Brief Introduction:
The iqualitrol rapid temperature change test chamber, also known as the temperature cycle test chamber or environmental stress screening (ESS) test chamber, is suitable for environmental stress screening tests.
By screening products for environmental stress, it accelerates the discovery of design defects in products and improves product reliability.
Technical Specifications:
| Model | QTH-300SC | QTH-600SC | QTH-990SC | QTH-300SD | QTH-600SD | QTH-990SD | |
|
Interior Dimensions (W*H*D)mm |
760*750 *500 |
800*950 *800 |
1100*950 *950 |
580*750 *765 |
800*950 *800 |
1100*950 *950 |
|
| Internal Volume (L) | 300 | 600 | 990 | 300 | 600 | 990 | |
| Exterior Dimensions (mm) | Subject to the actual object | ||||||
| Temperature Range | -40℃~+150℃ | -60℃~+150℃ | |||||
| Heating Rate | 5℃/min, 10℃/min, 15℃/min linear (customizable) | ||||||
| Cooling Rate | 5℃/min, 10℃/min, 15℃/min linear (customizable) | ||||||
| Humidity Range | 10%R.H~98%RH (humidity working range +10℃~90℃) | ||||||
| Temperature Fluctuation | ±0.3℃ | ||||||
| Temperature Deviation | ±2℃ | ||||||
| Humidity Deviation | -3~+2%R.H (above 75%R.H), ±5%R. H (below 75%R.H) | ||||||
| Temperature Change Rate | Heating rate: not less than 5.0℃/10℃/min (-55~85℃ average throughout the process) | ||||||
| Cooling rate: not less than 2.0℃/min (+85~-55℃ average throughout the process) | |||||||
| Cooling Method | Air cooling (or water cooling) | ||||||
| Inner and outer box materials | SUS#304 stainless steel + cold plate electrostatic spray paint | ||||||
| Water supply mode | Large water tank + automatic water replenishment device | ||||||
| Protective Device | Compressor overpressure, overheating protection, overcurrent, overtemperature protection in the box, heater air burning protection, overcurrent tripping protection, humidifier air burning protection, fan overcurrent protection, leakage protection, water tank water shortage protection, etc. | ||||||
