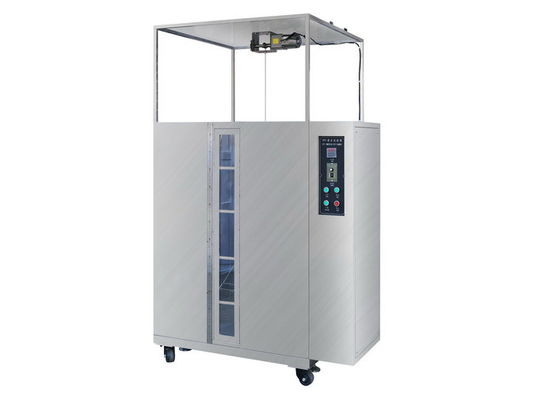

Tempered Glass Waterproof Level IPX7 Immersion Test Chamber

Tempered Glass Waterproof Level IPX7 Large Volume Immersion Test Chamber


Key Features:

1, Tempered glass material. Fully transparent box. Clearly observe the test situation.

2, The rack is all welded with 304# stainless steel, which will not rust after long-term use.

3, 40*40 square tube welding reinforcement, solid and pressure-resistant.

4, Super large volume, suitable for testing large objects.

5, The pipeline is designed at the bottom, and the appearance is more simple and generous

Technical Specifications:

Equipment model: ASR-IPX7-1000

Inner dimensions: L900×D900×H1200(mm)

Outer dimensions: L960×D960×H1400(mm)

Water level height: 1200mm

Water level display: stainless steel ruler visual (display number 1mm)

Water level adjustment: manual adjustment

Glass thickness: 12mm

Implementation standard: IEC60529-2013 GB4208 GB7000.(IPX7)

Brief Introduction:

The iqualitrol Immersion Test Chamber is suitable for the test of the full sealing stability of electronic products, electronic and electrical components such as electronic and electrical products, outdoor lighting, electrical cabinets, electrical components and other fields.

The chamber is designed and manufactured according to GB4208-2008 IEC60529-2013 GB7000.0-2002 and other relevant standards.

It can be used to test the waterproof performance of electrical equipment with the second characteristic numeral of waterproof level 7 (IPX7).

It is used to detect the protective performance of appliances with anti-immersion function. It is an essential equipment for electrical appliance manufacturers, electrical inspection departments and specialized certification agencies.
