| Model: | ASR-1220S | Data Output: | Print And Store Graphics (plug-in Displacement Curve, Life Curve, Inspection Report) |
|---|---|---|---|
| Connector Test: | Single Hole Plug-in Test, Full Row Plug-in Test | Test Load: | 50kg, 20kg, 5kg |

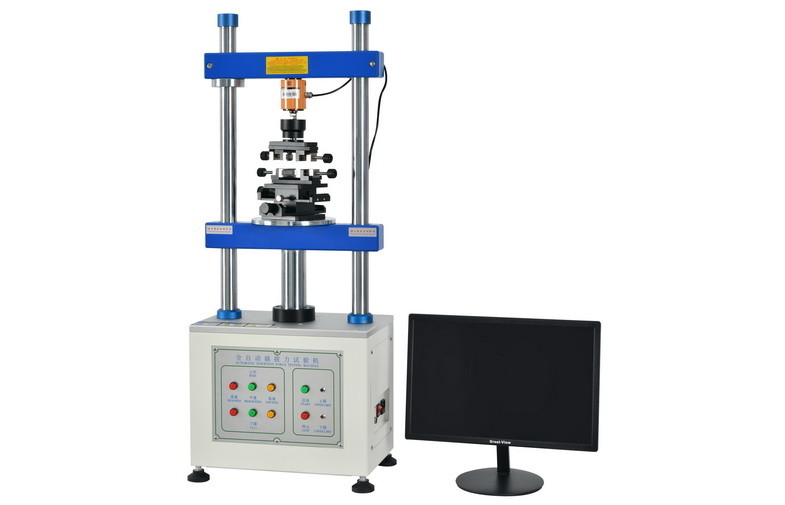

Insertion and Extraction Force Testing Machine with Max Height 150mm ASR-1220S
Technical Specifications:
| Test load | 50kg, 20kg, 5kg |
| Resolution | 0.01kg or 1g |
| Test height | 150mm |
| Test speed | 0~100mm/min |
| X.Y axis movement range | 0~75mm |
| Transmission mechanism | Ball screw |
| Dimension & weight | 360*260*940mm, 70Kg |
| Power supply | AC 110V or 220V |
Test Items:
Connector single hole plug-in test
Connector full row plug-in test
Connector plug-in life test
Connector single PIN and plastic retention test
Connector NORMAL FORCE test
General compression, tensile damage test
Can be connected to contact impedance machine at the same time (optional)
Key Features:
1, Can print and store graphics (plug-in displacement curve, life curve, inspection report)
2, Test data is stored in the hard disk (every data can be stored, unlimited times)
3, Test conditions are set on the computer screen, convenient and fast (including plug-in stroke, speed, pause time, etc.)
4, Test report header content can be modified at any time
5, Test report can be converted to EXCEL
