| Model: | ASR-5620 | Overload Alarm: | Automatic Stop Alarm For Overload Setting |
|---|---|---|---|
| Data Saving: | Automatically Save Ten Points And Obtain The Average Value | Display: | Large Screen LCD Real-time Display |

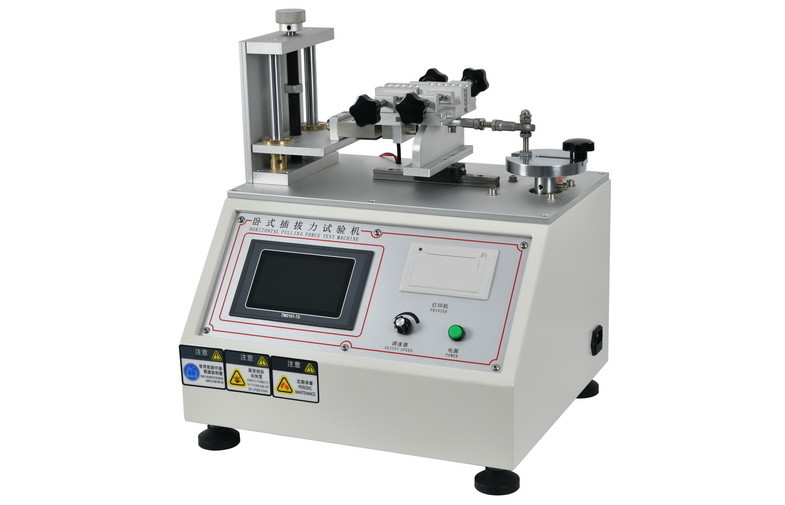

Touch Screen Horizontal Insertion and Extraction Force Testing Machine ASR-5620
Application Range:
The iqualitrol ASR-5620 is suitable for Insertion and Extraction tests of various connectors. It adopts embedded microcomputer measurement and control technology, which can simultaneously display the insertion force, pull-out force, and real-time force value.
It also has the function of setting the number of times, adjustable speed and stroke, and displaying the speed value, automatic zeroing, unit conversion, etc.
The rotating eccentric wheel power design makes the test speed and test stroke no longer related, and the test of connectors with long and short strokes is equally fast.
Main Features:
1. Automatic stop alarm for overload setting;
2. Automatic saving, which can automatically save ten points and obtain the average value;
4. Users with administrator password can modify the power-on password.
5. The load value is accurately calculated by software.
Technical Specifications:
| Frequency range | 0~999999 |
| Transmission mode | rotating eccentric wheel |
| Display | large screen LCD real-time display |
|
Insertion and extraction force range |
0~50kg |
| force resolution | 0.01kg |
| Stroke adjustment | 0~60MM |
| Test speed | 10~60 (digital display) |
| unit conversion | N, KG, Lb |
| Machine size | 550(D)*470(W)*450(H)mm |
| Power supply | AC220V/50Hz/1Ph |
