Product Details:
Payment & Shipping Terms:
|
| Model: | ASR-5630 | Main Application: | Key Switches, Computer Keyboards, Conductive Rubber Keys, Metal Shrapnel Keys |
|---|---|---|---|
| Test Speed: | 0-300 Times/min (or 0-120 Times/min) | Contact Force: | 0-500gf (adjustable) |

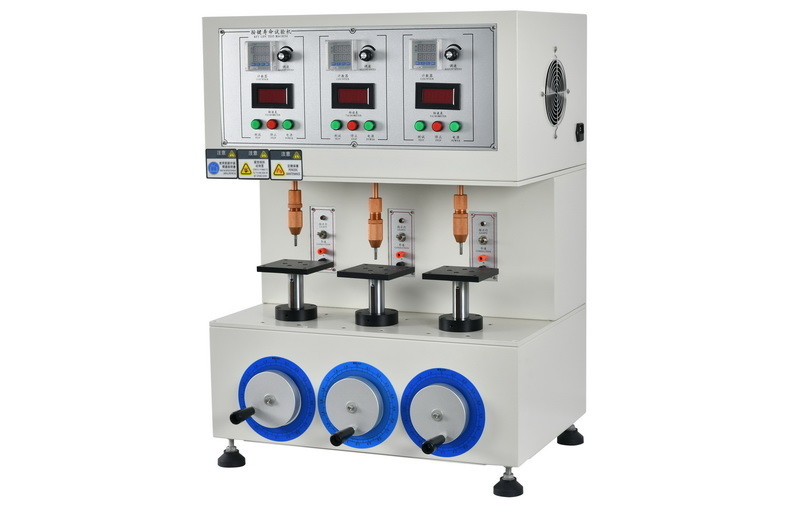

Three Stations Shaft Key Life Tester ASR-5630 with Power Off Memory
Brief Introduction:
The iqualitrol ASR-5630 is suitable for the life aging test of key switches, computer keyboards, conductive rubber keys, metal shrapnel keys (commonly known as pots) or keys of the same type.
It uses an advanced programmer to control the entire key life test process, can perform life test and channel test at the same time.
The machine will automatically stop if the key is damaged. If the object being tested is always "conductive" or always "non-conductive", the machine will stop transporting within 8 seconds.
Technical Specifications:
| Test Stations | 3 | Probe Travel | 0-20mm |
| Timer | 8 bits, Power-off memory | Stage Travel | 60mm |
| Power Supply device | DC 0-60V | Dimension | W500*D420*H480mm |
| Current: 0-3A adjustable | Weight | About 60kg | |
| Test Speed |
0-300 times/min (or 0-120times/min) |
Main Power Supply | AC220V/5A |
| Striking switch contact force | 0-500gf (adjustable) | Fixture range | 50*50mm, adjustable |
