Product Details:
Payment & Shipping Terms:
|
| Model: | ASR-7051 | Application: | Test The Oscillation Impact Resistance Of The Luggage |
|---|---|---|---|
| Test Speed: | Speed Of 30 Times Per Minute And A Stroke Of 4 Inches | Counter: | LCD 0-999999 Times 6-digit Display |

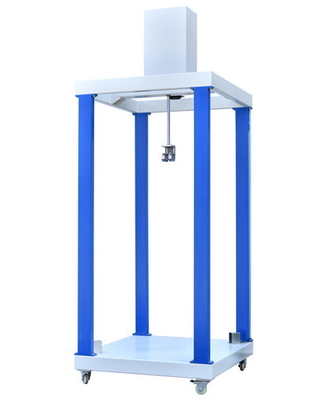

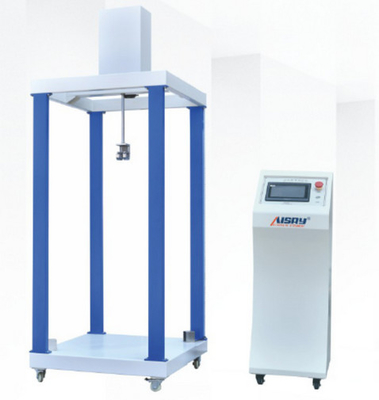

Bags and Suitcases Impact Shock Tester ASR-7051
Brief Introduction:
The iqualitrol luggage oscillation impact tester is used to test the oscillation impact resistance of the luggage handle, sewing thread and the overall structure.
The method is to load the specified load on the object, impact the specimen 2500 times at a speed of 30 times per minute and a stroke of 4 inches. The test results can be used as a reference for quality improvement.
Compliance with standards: The luggage oscillation impact tester complies with the American SAMSONITE standard.
Technical Specifications:
| Model | ASR-7051 |
| Impact height | 4 inches, (0-6 inches) adjustable |
| Vibration mode Spring type | 1.79kg/mm |
| Test speed | 30 times per minute, adjustable |
| Counter | LCD 0-999999 times 6-digit display |
| Machine size | 1400×1200×2500mm (L×W×H), support customized made |
| Weight | About 390Kg |
| Power supply | AC220V/50Hz/1Ph |
