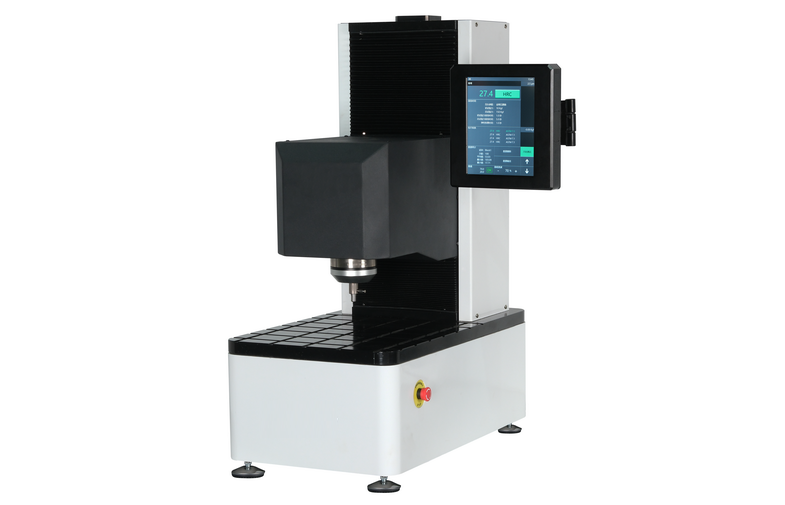

Indenter Lifting System Touch Screen Fully Automatic Rockwell Hardness Tester CHRTS-150ZD

Indenter Lifting System Touch Screen Fully Automatic Rockwell Hardness Tester CHRTS-150ZD

Brief Introduction:

The iqualitrol CHRTS-150ZD fully automatic Rockwell hardness tester adopts a closed-loop loading control system, with high test force accuracy, good repeatability and stability of the indicated value, novel shape, good reliability, operability and repeatability, and complete functions, one-button operation, fully automatic measurement, and clear and intuitive display.

Automatic loading and unloading test force, can perform hardness tests on the full range of Rockwell scales. The hardness tester can be equipped with an optional X-Y automatic platform, automatic programming, and automatic dotting, which is suitable for end quenching tests; it can be equipped with a computer, and the hardness tester can be controlled and measured through multiple computer terminals, and statistical analysis of data can be performed, and test reports can be issued.

The test report can also be customized according to the user's requirements. It realizes automated operation and eliminates human operation and reading errors! At the same time, the machine is also equipped with an emergency stop device, which is safer to use.

Technical Specifications:

Main Functions and Features:

1. The 8-inch LCD touch screen can intuitively display the hardness value, converted hardness, test method, test force, brightness, initial test force dwell time, total test force dwell time, elastic recovery time, number of measurements, statistical data, test time and other test processes. The test process is intuitive and clear;

2. The system has a built-in calibration function, which can automatically adjust the error range of 80-120%, or calibrate the instrument separately with low and high values.

3. When testing the curved surface, it is automatically corrected according to the standard curved surface radius;

4. It can store 100 sets of test data, and can view the test data at any time, delete the current data or clear all test data, and set the product name;

5. The test force units can be converted to each other, and the conversion units are: (Kgf, N).

6. The main interface can display 4 conversion scales at the same time, and can switch between: national standard (GB), American standard (ASTM) and international (ISO) standards, a total of 20 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength),

7. The screen sleep time can be set, and it will automatically enter the sleep state after a long period of inactivity, which is environmentally friendly;

8. The upper and lower limit measurement ranges can be set, which will be displayed on the main measurement interface, and unqualified values will automatically prompt an alarm;

9. Equipped with a built-in printer, the test data can also be exported to a USB flash drive via USB for storage and analysis (optional);

Main Application:

1. Determine the Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys;

2. Rockwell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;

3. Rockwell hardness of heat-treated materials such as quenching and tempering;
