Product Details:
Payment & Shipping Terms:
|
| Model: | Iqualitrol IGX-656 | Temp Range: | RT+10℃～+200℃ |
|---|---|---|---|
| Door Type: | Single Door | Temp Control: | Button Controller |

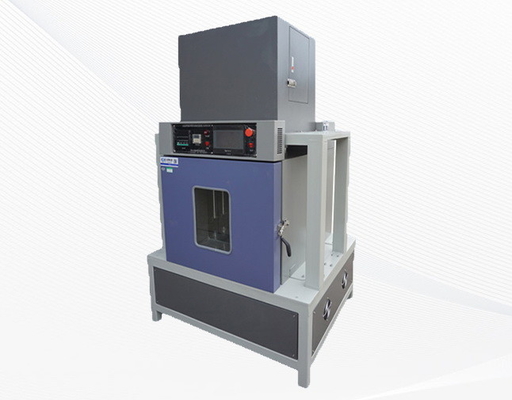

High Temperature Spring Fatigue Testing Machine iqualitrol iGX-656
Brief Introduction:
The iqualitrol High temperature spring fatigue testing machine iGX-656 is designed to perform a comprehensive life test of compression and torsion springs in a high-temperature oven, and to perform a reciprocating fatigue test at a certain temperature, speed, and stroke.
It is made of variable frequency motors, imported accessories, bearings, linear sliders, and adopts an upper and lower integrated structure.
Technical Specifications:
| Internal Dimension | 600×500×600mm, (Width * Height * Depth) |
| Temperature range | RT+10℃～+200℃ |
| Heating rate | Room temperature to 100℃, within 10 minutes |
| Temperature fluctuation | ≤±2℃ |
| Temperature distribution error | ±2℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Outer Material | Cold rolled powder paint |
| Inside Material | Stainless Steel |
| Insulation material | Aluminum silicate |
| Wind path structure | Centrifugal fan (Note: A fan cooling device must be installed above 400℃) |
| Door | Single door |
| Viewing Window | Tempered glass observation window (Note: no observation window above 300℃) |
| Ventilation holes and pipes | Exhaust hole, air intake hole |
| Temperature control method | Button controller |
| Shelf | 2 shelves, stainless steel |
| Power | Total 5KW |
| Heating system | Built-in nickel-chromium alloy heater, no pollution and long service life; completely independent system, no impact on control circuit |
Spring Performance Index:
| Test station |
2 stations, can test 10 groups at the same time |
| Test samples | compression spring, torsion spring |
| Maximum compression spring size | within 30mm outer diameter, can withstand a total capacity of 1000N |
| Maximum torsion spring size | within 100mm outer diameter, can withstand a total capacity of 50N.M |
| Torsion spring torsion angle | 0-180° |
| Test stroke | 0-30mm |
| Adjustment stroke | 0-150mm |
| Speed | 0-1000 times/min, can be set by PLC programming |
| Test number range | 1-99999999 times, can be set by PLC programming |
| Operation mode | touch screen control |
| Control mode | PLC program |
| Power supply | AC220V/50Hz |
