Product Details:
Payment & Shipping Terms:
|
| Model: | ISR-7130 | Material: | Stainless Steel #304 |
|---|---|---|---|
| Temp Range: | Room Temperature - 40℃ | Refrigerant: | R404 Refrigerant |

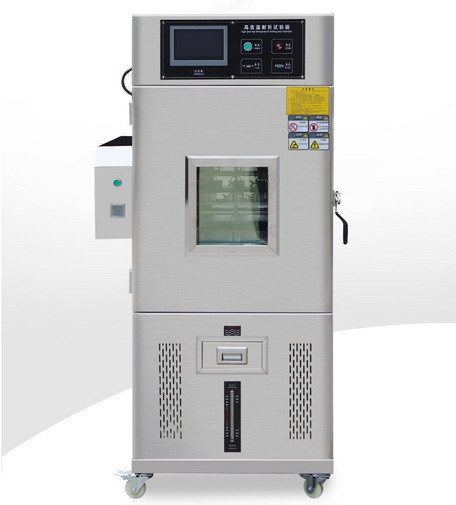

High Temperature Flexural Strength Test Machine iqualitrol iSR-7130
Application Range:
The iqualitrol high temperature flexural strength machine iSR-7130 used to test the cold resistance of finished shoes, rubber, plastic, soles, synthetic leather, etc.
Used to evaluate the suitability of materials or finished products in low-temperature climates or cold regions.
Technical Specifications:
| Inner and outer chamber material | stainless steel #304 |
| Controller | Omron temperature controller |
| Temperature range | room temperature -40℃ |

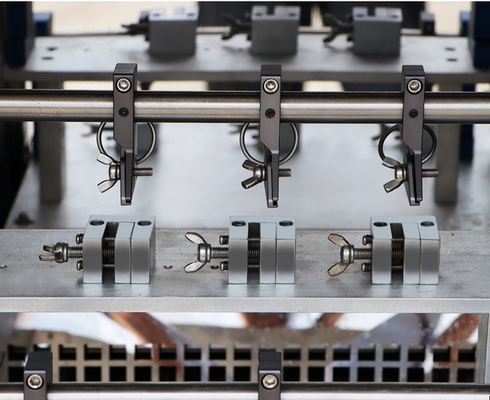

| Optional inner box action | add finished shoe bending resistance, outsole bending resistance, leather torsion resistance clamp |
| Protection device | thermal protection shutdown, leakage protection Shutdown, over-temperature protection, overload protection and other functions |
| Control accuracy | ±0.3℃ |
| Distribution uniformity | ±0.1℃ |
| Cooling speed | takes about 45 minutes from room temperature to -40℃ |
| Refrigerant | R404 environmentally friendly refrigerant |
| Compressor | Original fully enclosed type |
| Compressor start delay | 5min |
| Power consumption | 4-6KW |
| Insulation material | rigid foam and glass wool |
| Counter | LCD, 0-999999 |
