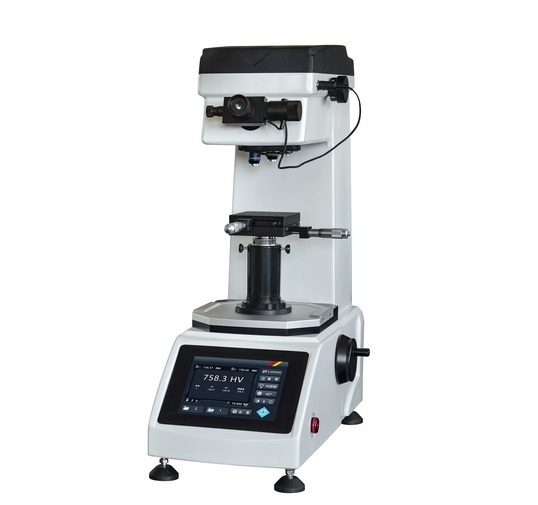

Digital Micro Vickers Hardness Tester MHVT-1000Z Auto Turret and Touch Screen

Product Features:

Special material lifting screw, heat-treated to a hardness of 35~40 HRC, wear-resistant, with a worm gear and worm wheel structure for smoother lifting;

Internal mechanism primarily composed of stainless steel and aluminum alloy parts, more stable and reliable;

Weight-loading system, automatically switching weights according to the test force without manual knob operation; the loading, dwell, and unloading of test force are automatically completed;

Equips with 3 objectives for measurement, with automatic recognition and switching between objective and indenter;

Uses LED cold light source, more durable;

Vickers and Knoop testing modes are available, support conversion among various hardness scales, real-time switching and selectable conversion;

Supports setting of upper and lower limits, with out-of-tolerance alerts;

Hardness test results are saved in real-time, automatically calculating maximum, minimum, average, standard deviation, repeatability, etc., with multiple folder selection, optional deletion, and print output;

Built-in thermal printer with fast printing speed, equipped with USB port for direct data export to a USB disk, and includes an RS232 port for connection to a computer for output.

Application Scope Of MHVT-1000Z:

Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals; glass, ceramics, agate, gemstones, thin plastics, etc.; depth and gradient hardness testing of carburized layers and hardened layers.
