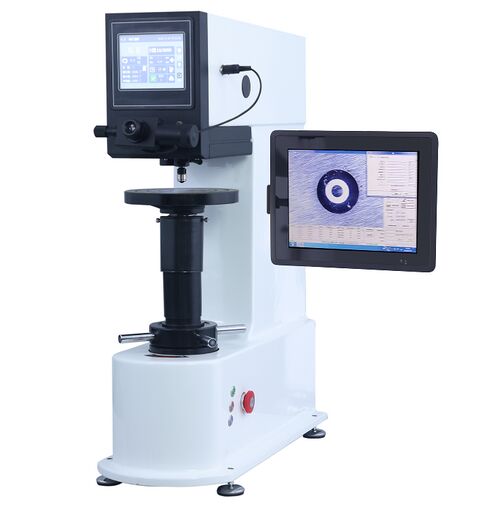

Fully Automatic Vision
Brinell Hardness Tester VHBS-3000QZD with Dual Touch Screen
Main Features:
1, VHBS-3000QZD not only has computer communication control for loading and automatic measurement, but also features automatic Z-axis lifting. The entire pressing process can be completed with just one key start, saving time and effort while being fast and efficient.
2, Equipped with 10 levels of test force, capable of testing 10 types of Brinell scales, with a wider testing range;
3, Stable structure, by using special sand-casting process, stable structure that does not deform;
4, Closed-loop sensor loading microcomputer control system, high testing accuracy, stable performance, fast acceleration, and high efficiency;
5, Microcomputer control software system, allowing control of automatic loading and unloading, automatic force compensation, and automatic measurement, ensuring reduction of human operational errors, convenient and efficient;
6, The machine generates very low noise during the testing process, suitable for use in various laboratories;
7, The machine can be used with computer Brinell image measurement system software, greatly improving work efficiency.
Technical Specifications:
| Model | VHBS-3000QZD |
| Brinell Scales | HBW2.5/62.5, HBW10/100, HBW2.5/187.5, HBW5/125, HBW10/250, HBW10/250, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test forces | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Vertical space | 200mm |
| Length Resolution | 0.625µm |
| Dwell Time | 0~60s |
| Brinell Range | 8~650HBW |
| Magnification | 20X |
| Executive Standards | EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150 |
| Depth throat | 140mm |
| Hardness display | By LCD, with built-in printer |
| Power supply | AC220+5%,50~60Hz |
| Dimension | 580*250*780mm |
| Net weight | 130KG |
