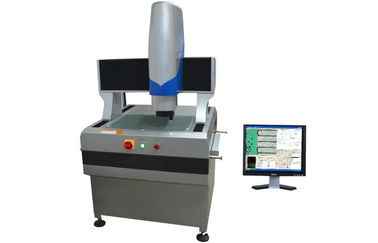

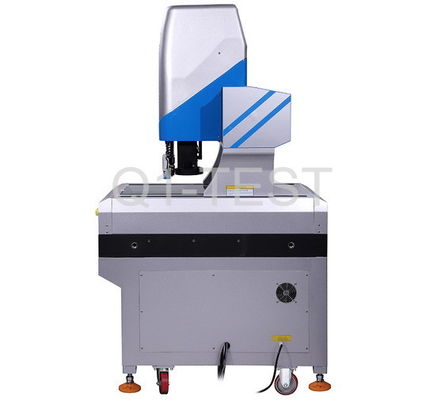

2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe

China 2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe supplier
2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe supplier 2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe supplier 2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe supplier 2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe supplier

Large Image :  2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: QVS-4030CNC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
Z Axis: Travel 200mm Accuracy: X/Y-Axis: ≤3+L/200(um)
Vision: 1/2“ Color CCD Camera Software: QuickMeasuring 4.1/4.2
Zoom Lens: 6.5X Motorized Coaxial Zoom Lens Motor: Double Close-loop Servo Motor
High Light:

vision measurement system

,

visual measuring machine



2.5D Fully Automatic CNC Vision Measuring Machine with CCD Navigation System


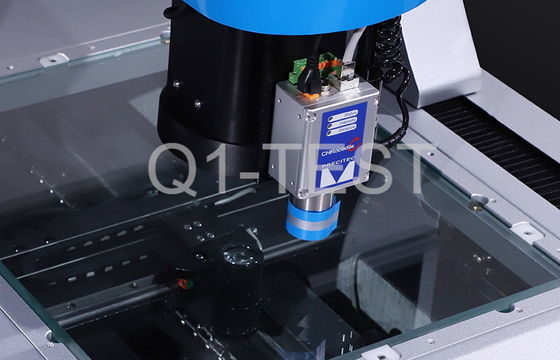

Characteristics:

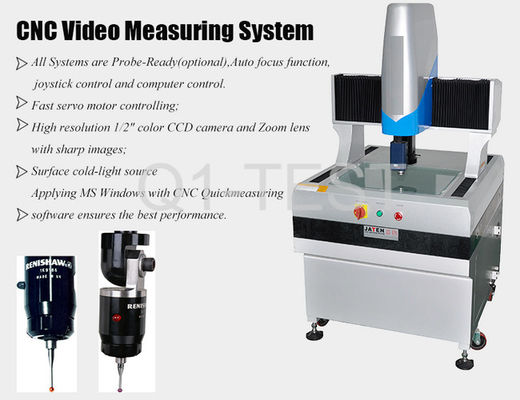

► Precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;

► Adjustable 48-division Ring LED illumination controlled by software and with memory function;

► Advanced 6.5X motorized coaxial zoom lens and 1/2” color high resolution CCD camera;

► 3-axis high-accuracy GSI or Renishaw 0.5um linear scale;

► CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;

► Powerful fully-auto QM4.1 measuring software, edit/save/input the program and then auto running.





Specification:

2.5D Model QVS-3020CNC QVS-4030CNC QVS-5040CNC
3D Model QVS-3020CNCP QVS-4030CNCP QVS-5040CNCP
X,Y-axis Travel 300x200mm 400x300mm 500x400mm
Z-axis Travel 200mm
X/Y/Z Linear Scale(2.5D) Resolution:0.0005mm
Accuracy X/Y-axis:≤3+L/200(um); Z-axis:≤4+L/200(um)
Repeatability ±2um
Video System

1/2“ color CCD camera

6.5X Motorized coaxisl zoom lens

Illumination Contour Adjustable 256-grade LED Cold illumination
Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination
Surface
3D Measuerment 3D Module and UK Renishaw MCP-K2 Touch Probe
Measuring Software Quick Measuring 4.1/4.2
Max.load Capacity 35Kg 30 Kg 25 Kg
Dimension 860x740x1760 1060x740x1760 1160x940x1760
Net Weight 250Kg 300Kg 360Kg



Standard Delivery:

Measuring Software CCD Camera Motorized Coaxial Zoom Lens 100mm Length Block
Calibration Block DH Capture Card 48 –Division LED Illumination Renishaw Probe MCP-K2(3D)
Movement Control Card Scale Transfer U3 CCD Navigation Working Cupboard
Linear Scale Operation Joystick PC System



Optional Accessories:

Renishaw MCP-K1 Probe(3D) 0.5X Auxiliary Objective 2X Auxiliary Objective
Renishaw MCP-K1 Probe(3D) 12.5X Motorized Zoom Lens Laser Measuring System





Motorized Zoom Lens:



2.5D Fully Automatic CNC Vision Measuring Machine CCD Navigation support 3D touch probe
